stone cnc router CXS1325
NO.1 Main Features of stone working cnc router CXS13251.Heavy model with thick seamless steel lath body structure. By strict vibration aging technology to remove the internal stress , dust-free sandb
Send inquiry
NO.1 Main Features of stone working cnc router CXS1325
1.Heavy model with thick seamless steel lath body structure. By strict vibration aging technology to remove the internal stress , dust-free sandblasting paint process, long-term use without deformation.
2.Three axes adopt Taiwan high precision linear orbit. X and Y axes adopt rack and pinion transmission, fast working, high efficiency . Z axis adopts Taiwan ball screw,with high precision and long life time.
3.Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.3. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
4.Can be used for marble or stone engraving work, also can do any kind of wood, PVC carving and cutting work.
5.Heavy bistratal Side plates, which can keep large supporting power for the gantry's moving perfectly.5. Heavy bistratal Side plates, which can keep large supporting power for the gantry's moving perfectly.
6.Independently Electric Control Box, with perfect wiring and free moving pulley.
No.2 Application of Stone cnc router machine

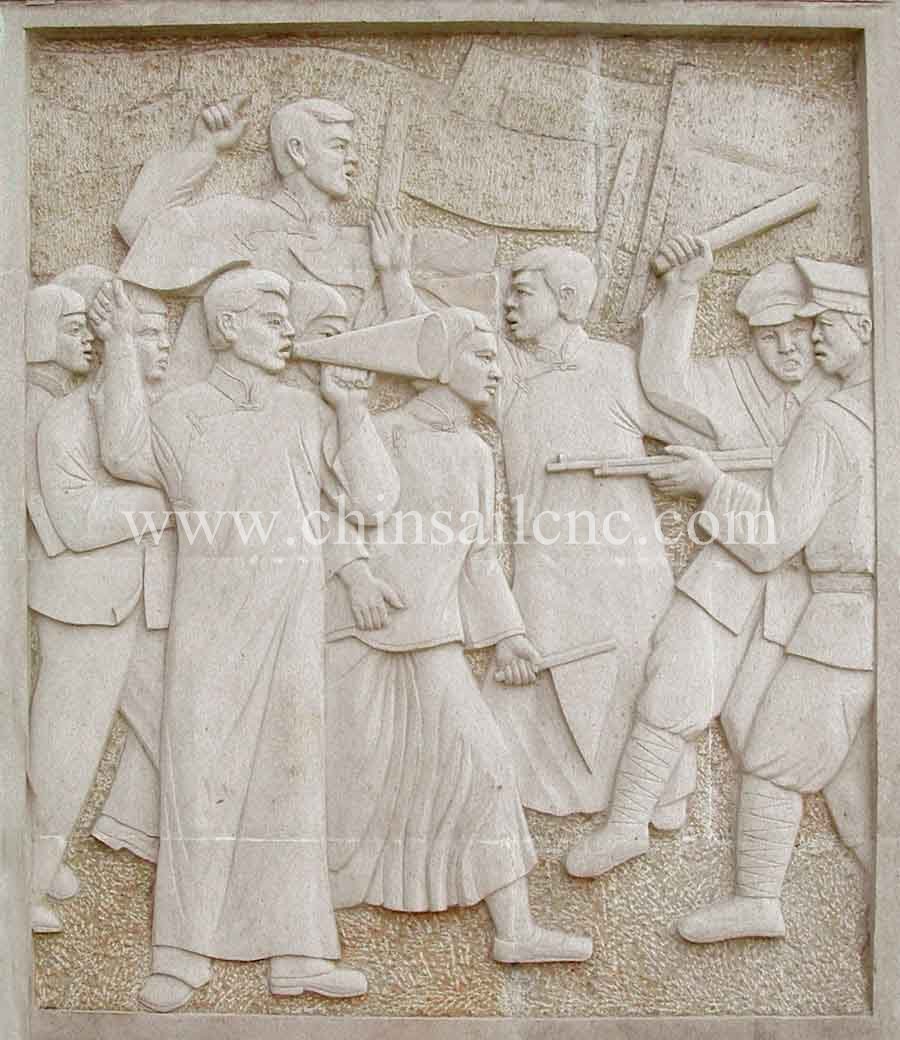

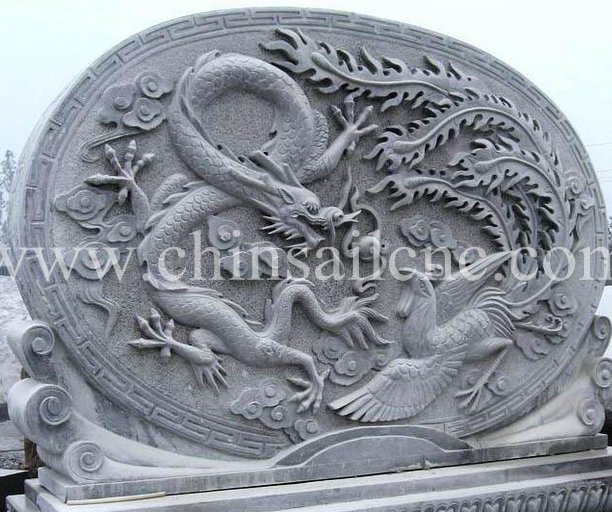

a. Suitable for big size hard materials such as Marble, Granite, Artificial stone,Tombstone, Ceramic tiles,Glass, etc, can be engraved by such machine, to produce arts and crafts, pictures, etc.

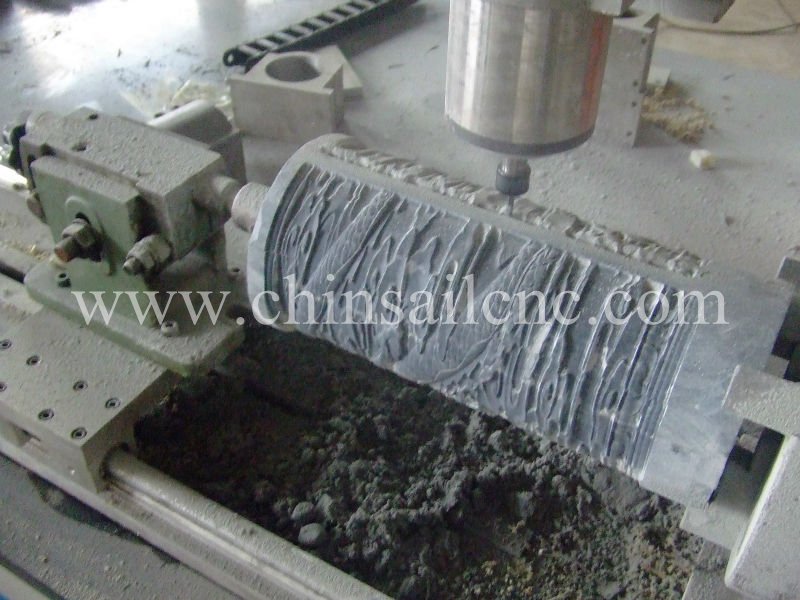

b. This machine can be also used to work on Wood, Advertising materials.mold. relief sculpture, 3D engraving & Cylinder object engraving.
No.3 PARAMETERS
| Model | CXS1325 |
| X,Y-axis working area | 1300*2500mm |
| Body dimensions(with bracket) | 2900*1750*1400mm |
| Z-axis working area | 300mm |
| Max. Feeding height | 120mm or bigger |
| Cutting thickness of material | ≤40mm |
| Max. travelling speed | 8000mm/min |
| Engraving speed | 0-6000mm/min |
| Mechanical precision | 0.01mm |
| Compatible Software | Type 3 software , Artcut software , Artcam software |
| Max. Power consumption | 3.2KW |
| Power source | 220V/380V |
| Driving system | Stepper motor |
| Memory | 128M |
| Spindle | 5.5KW water cooling spindle |
| Spindle speed | 0-24000RPM |
| Blade diameter | 3.175mm,4mm,6mm, 8mm, 13.5mm |
| Control system | Mach3 controller, USB offline |
| Command | G code, Uoo, mmg, plt, HPGL |
| Running ambient temperature | 0-45°C |
| Relative humidity | 30%-75% |
| Optional items | Rotary axis |
No.4 After-sale service
a. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
b. Lifetime maintenance free of charge.
c. Free training course at our plant.
e. 18 hours on line service and email each day, free technical support.
f. Machine has been adjusted before delivery.We will take machine photos and make machine working image for you , after getting your agreement ,then we will book a ship.
g. If you have any problem during your use.you need our tchnician to judge where theproblem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.
No.5 Related models: CXS1320, CXS1530, CXS2030, CXS2040 etc
