mould metal cnc router CXM00606-M1
No.1 Featuresa. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission.b. High power water cooling brushless motor, more forceful cutting capa
Send inquiry
No.1 Features
a. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission.
b. High power water cooling brushless motor, more forceful cutting capability, wear well;
c. High speed driver and stepper motor could enhance work efficiency;
d. Well designed dust and water proof device ensure the machine easy maintenance;
e. Advanced in CNC industry, break-point memory pointes for 10 pcs, reducing material waste;
f. High compatibility, applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension characters in fancy style etc.
No.2 Application

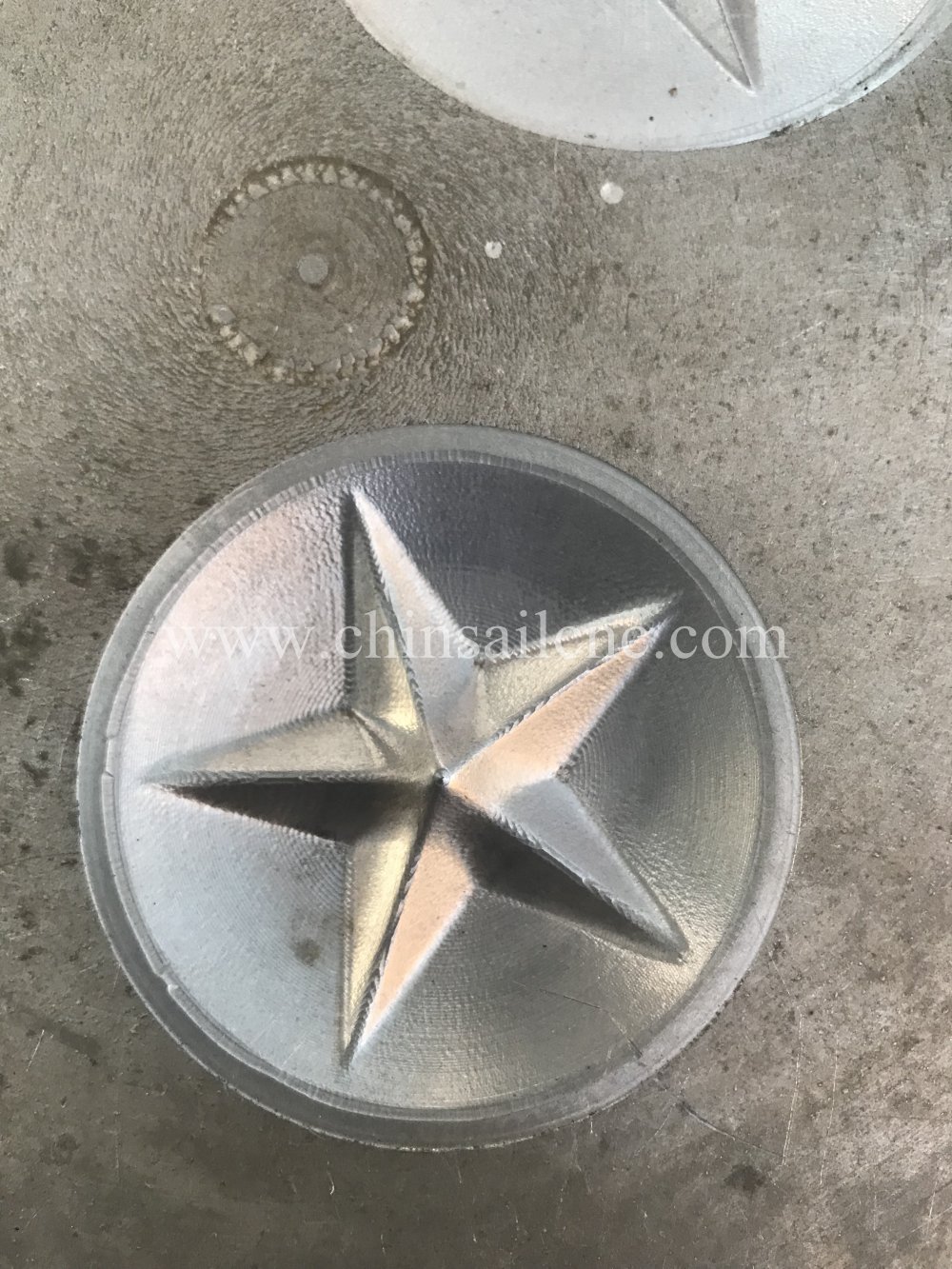

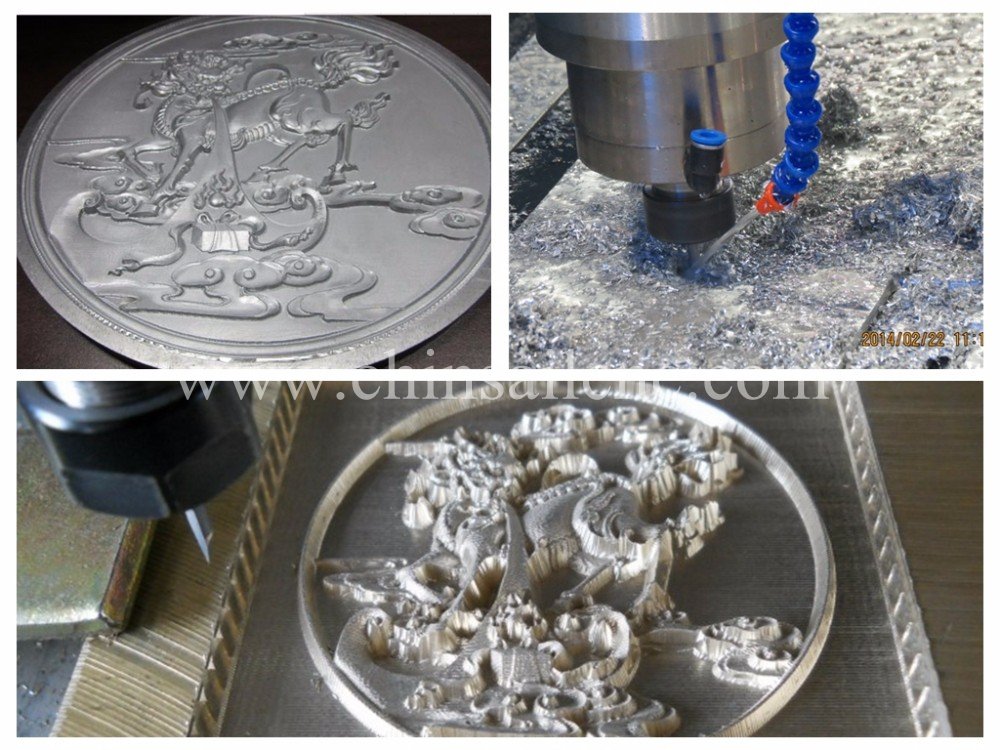

1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2. It can widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3. Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand, graphics and words of three-dimensional and outside surface's sleeking of large size.
No.3 Parameter
| Traveling size | X Working Area | 600mm |
| Y Working Area | 600mm | |
| Z Working Area | 200mm | |
| Accuracy | Working Accuracy | ±0.01mm |
| Repositioning Resolution | ±0.01 mm | |
| Table | Surface | PVC |
| Transmission | X/Y Axis | Taiwan high accuracy square guide |
| Z Axis | Ball screw | |
| Structure | Lathe Structure | Integral cast iron |
| Speed | Rapid Travel Rate | 15000mm/min |
| Working Speed | 8000mm/min | |
| Spindle | Spindle Power | 3.2kw/5.5kw |
| Spindle Speed | 0-24000rpm | |
| Inverter | 3.7KW | |
| Working | Drive motor | Stepper motor /JAPAN YASKAWA Servo motor |
| Command Language | G code(optional:HPGL) | |
| Others | Working Voltage | AC220/50HZ |
| Operating System | Original NC studio with handwheel | |
| Compatible Software | Type3(optional:Artcam,Ucan) | |
| Weight | Gross weight | 1000kg |
| Net weight | 800kg | |
| package | Plywood box | |
No.4 Frequently asked questions:
We support Trade Assurance in Alibaba and you can pay it by your credit card. It is very convenient.
We also accept T/T and West Union.
You can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit. after the machine is ready, we will show you the machine
photos and the testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
No.5 Our after-sale service
a. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
b. Lifetime maintenance free of charge.
c. Free training course at our plant.
d. We will provide the consumable parts at an agency price when you need replacement.
e.18 hours on line service each day, free technical support.
f. Machine has been adjusted before delivery
g. Our staff can be sent to your company to install or adjust if necessary.
No.6 Related models: CXM0609-M2, CXM0404-M1, CXM0404-M2 etc.
