mould metal cnc router CXM00606-M2
Moveable tableCompared with gantry moving, the cutting precision is much higher with a moving table.No.1 Features1. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with wate
Send inquiryMoveable table
Compared with gantry moving, the cutting precision is much higher with a moving table.
No.1 Features
1. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle
2. Machine structure: The machine is with full enclsoure. The engraving or cutting process will be isolated in an independent space.
3. Quality assurance: Each device before leaving the factory, we will test the machine and send you testing videos.
4. DSP control system: The controller for this machine is DSP NK105. Easy to be operated, with high performance and competitive price.
5. Servo motor and drives: China domestic servo motor, with high precision and long life
6. HIWIN linear guide: made from Taiwan, used for linear reciprocating stadium Option parts:
1. The working range can be customized as per your requests;
2. Control system: Weihong NK260 or Syntec or as your request
3. Power of the spindle can be changer according to your work requirements.
4. Different linear guide, precision ball screw, servo motor, system components as your request
No.2 Application
Application Materials

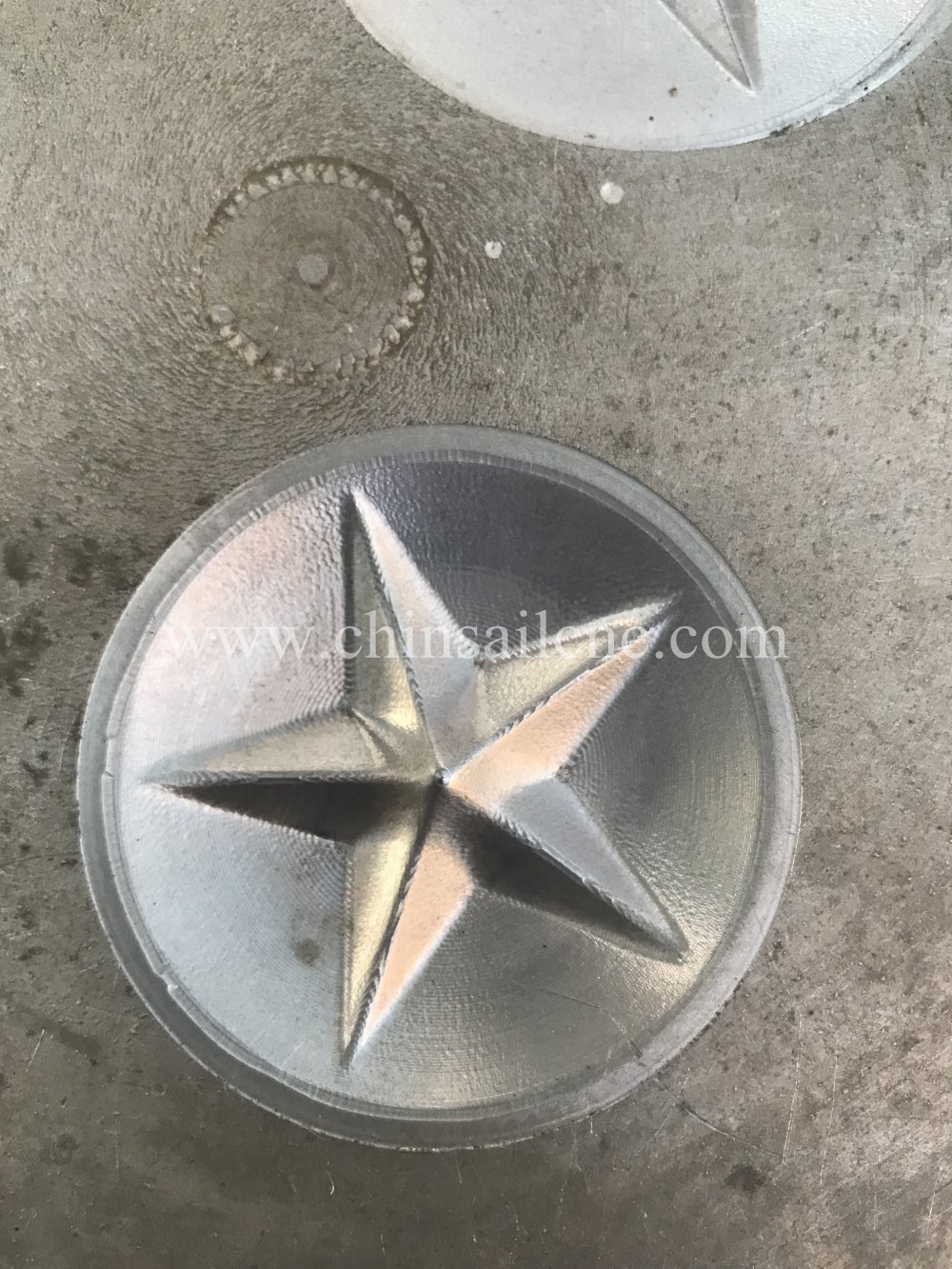

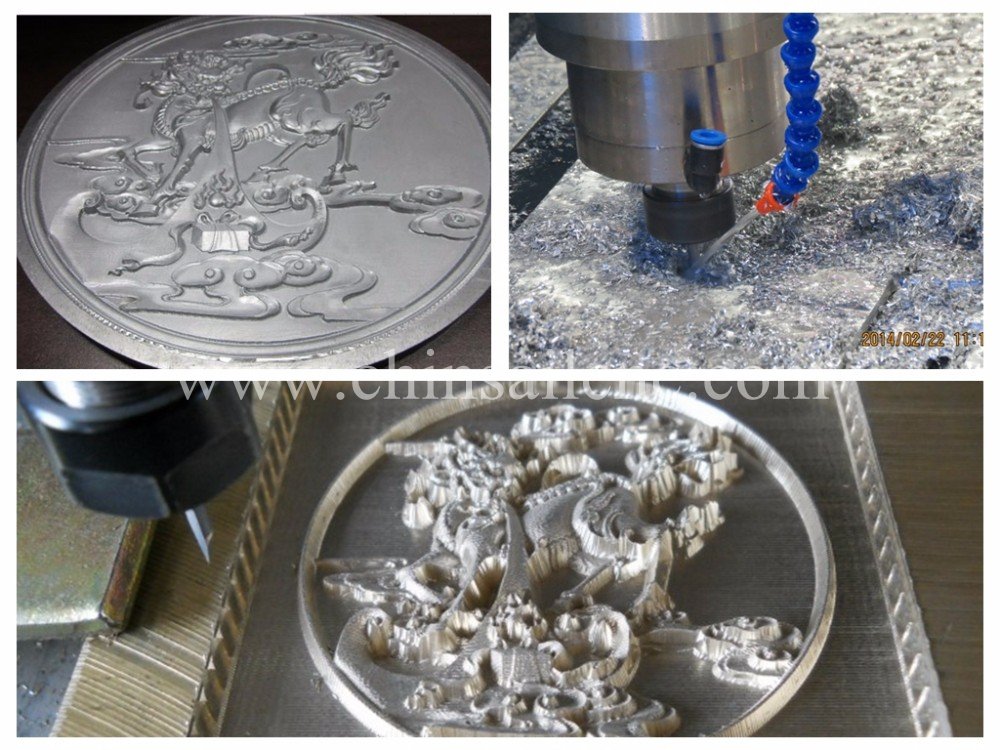

Suitable for small work piece precisely processing, mainly used for metal, such as aluminum, copper, stainless steel,
titanium, zinc etc.Also suitable for wood, MDF, acrylic, organic glass, PVC, double color board, stone, jade processing.
Application Industries
Suitable for Moulding Industry, Craft Industry, Stone processing factories, Advertising Industry etc.
No.3 Parameters
| Travelling size | X working area | 600mm |
| Y working area | 600mm | |
| Z working area | 200mm | |
| Accurancy | Working Accurancy | ±0.05mm |
| Repositioning Resolution | ±0.05 mm | |
| Table | Surface | T-slot Aluminum +PVC |
| Guide rail | Taiwan HIWIN square guide rail | |
| Transmission | X/Y/Z Axis | Taiwan TBI ball screw |
| Structure | Lathe Structure | Movable T-slot cast iron table |
| Speed | Rapid Travel Rate | 15000mm/min |
| Working Speed | 10000mm/min | |
| Spindle | Spindle Power | 5.5KW constant power spindle |
| Spindle Speed | 0-24000rpm | |
| Inverter | Fuling inverter | |
| Working | Drive motor | China domestic Servo motor |
| Command Language | G code(optional:HPGL) | |
| Others | Working Voltage | AC220/50HZ |
| Operating System | Weihong DSP NK105 contriol system | |
| Compatible Software | Type3 (optional: Artcam,Ucan) | |
| Weight | Gross weight | 800kg |
| package | 1. Protective film package and fumigation-free plywood case. 2. OEM and package can according to customer requirements. | |
No.4 After-sale service
1. 2 years guarantee period of whole machine, any damage parts can change free ( not included consumable ). but you should pay all the shipping cost.
2. Exceed warranty period: if the cnc router parts have any problems, we can offer new parts at cost price and you also should pay all the shipping cost.
3. Free training for machine installation and operation in factory.
4. Machine will be adjusted before it is delivered .
5. Our technician can give you remote guide online(Skype or whatsapp) if you have any question.
6.We can custom for you according to the size of your material. ( OEM Order)
No.5 Related models: CXM0606-M1, CXM0606-M2, CXM0609-M1, CXM0609-M2 etc
