cnc router CXM1530 with rotary
No.1 Features of 1530 cnc router machine1. This is high configuration,3.0KW china famous brand water cooling spindle,Leadshine Servo motor and Fuling inverter,Taiwan Hiwin linear square guide ,high pr
Send inquiry
No.1 Features of 1530 cnc router machine
1. This is high configuration,3.0KW china famous brand water cooling spindle,Leadshine Servo motor and Fuling inverter,Taiwan Hiwin linear square guide ,high precision,long life time,steady working,easy to start up.
2. Thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3. The vacuum table holds tightly the carving materials which makes operating more reliable an convenient.
4. Professiona MACH3 controller system with USB interface, working without connecting with computer during working and easy to control.
5. Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
6. Auto oilling system ,easy to operate by pressing one key.
7. seperated control system makes operation easily.
No.2 Application of 1530 cnc router machine
Applicable filed

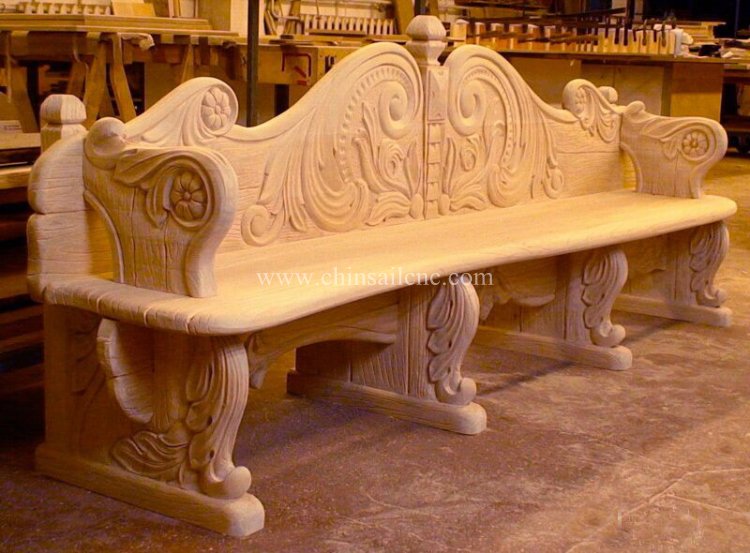

Wood processing: processing of various furniture such as door, window, cabinet, craft, wood door, wood screen and so on.
Advertisement: engraving and cutting MDF,acrylic,PVC,various labels and nameplate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other
nonmetal materials and light metal materials.

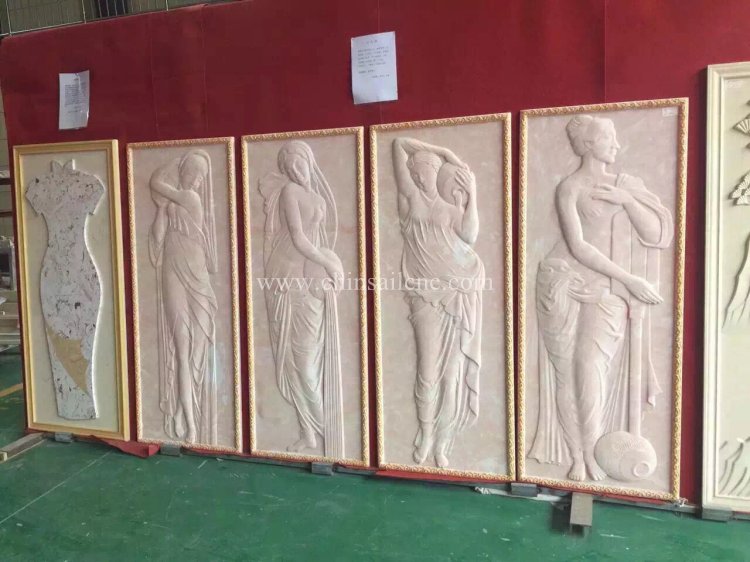

Processing effect
It can manufacture the following effects: Engraving, Cutting, Drilling and Milling, including flat (2D)
Relief (3D) ,hollow, and so on.
No.3 Parameters of technical data of 1530 cnc router machine
| Model | CXM1530 |
| XYz Working Aerial | 1500*3000*200mm |
| Table structure | T-slot table (vacuum table for option) |
| Guide Rail | All Taiwan HIWIN /PMI Square Rail 25 |
| XY Axis Transmission | Helical Rack & Pinion Transmission |
| Z Axis Transmission | TBI Ball Screw |
| Spindle Style | Water-cooled Spindle |
| Spindle Power | 3.0/4.5/5.5kw |
| Max Spindle Speed | 0-24000r/min |
| Max Air Move Speed | 500000mm/min |
| Max Working SPeed | 150000mm/min |
| Processing Accuracy | ±0.02mm |
| Preposition Accuracy | ≤0.03mm |
| Working Voltage | 220V/380V |
| Inverter | Fuling Inverter |
| Control System | MACH3 controller |
| Driving System | Leadshine Servo motor and driver |
| Command | G code |
| We are factory accept personal customer | |
No.4 Package & Shipping
Packing:we use strong non-fumigation wooden case with steel tube under the pallet. so it can avoid any damage to the machines. we also buy the insurance for the shipping and mahcine. if it is damaged, we can get compensation from insurance company.standard exporting plywood case for cnc router machine.
Shipping: We arrange shipment by sea, by train.
No.5 Related models :CXM1325, CXM1530, CXM2030, CXM2040 etc
