cnc router CXM1325 with rotary
About rotary axis, there are two types, one is rotary axis put on the table, and Z axis need to he heighten. One is the rotary axis put beside the table.If need rotary axis, pls kindly tell us the dia
Send inquiryAbout rotary axis, there are two types, one is rotary axis put on the table, and Z axis need to he heighten. One is the rotary axis put beside the table.
If need rotary axis, pls kindly tell us the diameters and length of rotary axis you want, then we can calculate the machine price for you.
No.1 Features
This CNC Router Machine is especially designed for engraving cutting on wood, acrylic, metal. The machine works with 200mm Z (height) of job size with 1300mm*2500 mm T-slot table.
We use stepper motor 3.0kW water cooled spindle, Fuling inverter that is qualified for a job and the size of the timber, and large mass production. With hard steel structure, the machine is suitable for the job of hardwood, such as cutting and engraving rosewood for furniture, interior decoration.
Beside, it woks with the attached rotary. Rotary attached is suitable for larger diameter of the rotary for the better working precison than putting it on the table
No.2 Applications

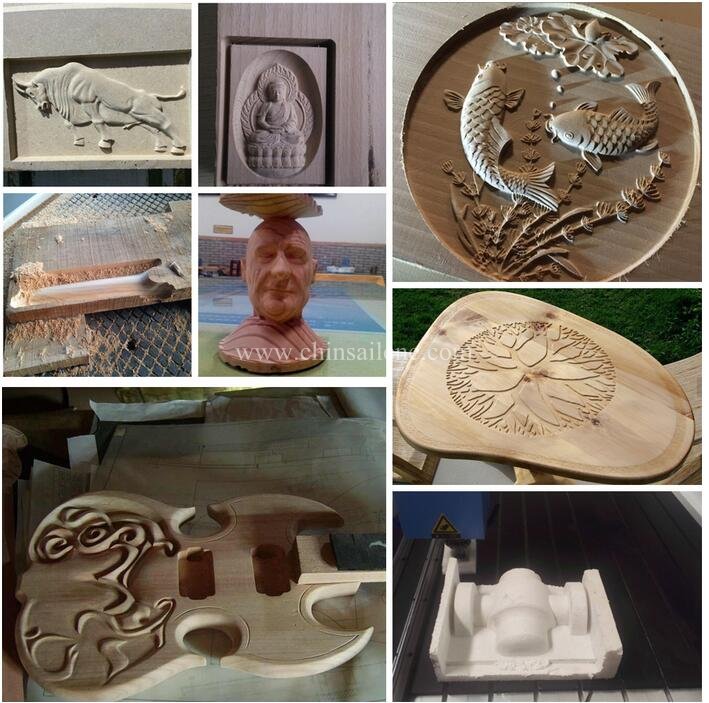

Woodworking industry wave plate processing, wood cabinet, cupboard door, fine pattern’s engraving, carving of the antique furniture, craft wood door, paint-free door, byobu, craft casement,etc.
Also can for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module, billboard, plate, LED/neon channel, literal-hole cut, blister Lightbox mold…
No.3 Parameters
| Model | CXM1325-A2 Rotary attached |
| Machine frame | Steel pipe 10mm (Steel pipe 8mm for choose) |
| Working area (X Y axis) | 1300*2500mm (1500*3000/2000*3000/2000*4000mm for optional) |
| Cnc spindle | 3kw water cooled spindle (Air cooled spindle for optional) |
| Table | T-slot table |
| Control system | Mach3 controller (Nc-studio, DSP for optional) |
| Inverter | Fuling inverter |
| Motor | Stepper motor and leadshine driver |
| Working temperature | - 10°C -45°C |
| Rotary | Rotary attached |
| Humidity | <90><!--90--> |
| Power voltage | 380V or 220V |
| Operation language | English |
| Optional | Dust collector |
No.4 Our service
1.Guarantee for 2 year exluding comsumable parts .Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk was included. If there is also any questions, pls kindly tell me
7.We have manual instruction and CD (Guiding Videos) for Software's Installing amd Operateion and Machine's Using and Maintaining.
8.Free installation and fully test before sending and free training for operators, When you got the machine ,you can use it directly.
No.5 Related models :CXM1325, CXM1530, CXM2030, CXM2040 etc
