Pneumatic Tool Changer 3 heads cnc router
The machine can be with 2 heads, 3 heads, 4 heads. it is also called simple tool changer. Its price is economic than professional auto tool changers. Every time only one head can work.No.1 Features#Th
Send inquiryThe machine can be with 2 heads, 3 heads, 4 heads. it is also called simple tool changer. Its price is economic than professional auto tool changers. Every time only one head can work.
No.1 Features
#This machine can achieve 3 spindle auto changer
#Heavy duty machine body
#2000*3000*200mm XYZ working size
#Vacuum table with T-slot, 5.5kw water cooled vacuum pump
#Three sets 3.0 KW water cooled spindle, 0-24000RPM, 3 spindle auto change
#Fuling inverter
#Leadshine servo motor and driver
#X Y axis Taiwan Hiwin square rail and bearings; Helical rack pinion
# Z axis Taiwan Hiwin square rail and bearings; TBI ball screw
#RichAuto A15 DSP control system with USB interface
#Oil lubrication system
#Big independent control box
#Dust collector system with spindle hood and 3.0kw double back dust collector
#Auto height tool sensor

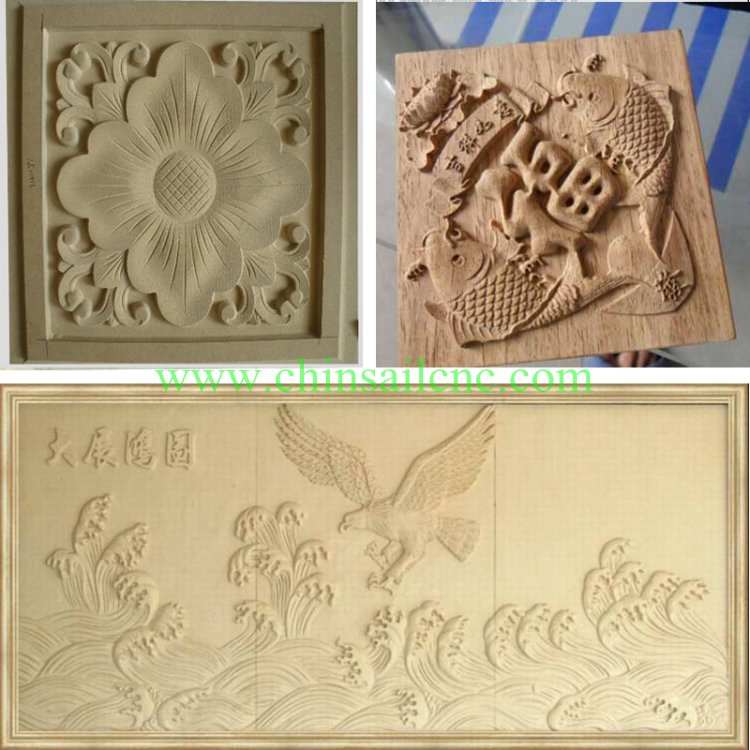

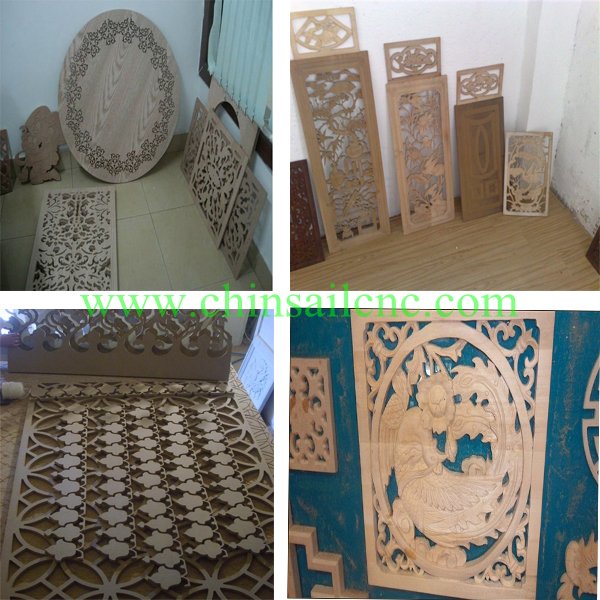

No.2 application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
No.3 Auto tool change cnc router Specification
| Model | CXM2030-3 heads |
| Rotary axis | 2000*3000 mm |
| Machine body | Heavy duty seamless steel pipe welding |
| Table surface | Vacuum table with T-slot |
| XY structure | Taiwan Hiwin square rail, Rack-wheel |
| Z structure | Ball screw drive, Taiwan Hiwin square rail |
| Spindle | 3.0 kw water cooled spindle*3 sets auto change |
| Spindle speed | 0-24000 RPM |
| Drive motor | 86BYG stepper motor and drvie |
| Max. Rapid Travel Rate | 60000 mm/min |
| Max. Working speed | 30000 mm/min |
| Control system | DSP A15 |
| Software | Type3, Artcam, Ucancam |
| Command | G code |
| Machine precision | 0.01 mm |
| Repositioning precision | 0.03 mm |
| Working voltage | AC 220/380V |
| Machine Size | 2000mmX3200mmX1850mm |
| Net weight | 1800KG |
| Dust collector | optional |
| Remark | We can customize the model for any processing size |
No.4 Related models :CXM1325, CXM1530, CXM2030, CXM2040 etc
