Independent double heads cnc router
2 heads cnc router, independent heads can work at the same time, also can work 1 head. No.1 Featuresa.Adopt Taiwan H25 linear square guide rail, double slippers. Bearing heavy, working steadily high
Send inquiry2 heads cnc router, independent heads can work at the same time, also can work 1 head.
No.1 Features
a.Adopt Taiwan H25 linear square guide rail, double slippers. Bearing heavy, working steadily high precision, and long life time. Imported ball screw, high precision for cutting.
b.Adopting advanced NC-studio /DSP system, operated with the handle, convenient operation, humanization design.
c.Unique intelligent budget principle,fully develops the potential of the motor and lead to high processing speed,the synchronization of curves and straight lines,smoother curves.
d.Well compatibility CAD/DAM designing software e.g. Type3/artCAM/Castmate/wentai etc.
e.Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials. no oil vacuum pump,high suction,more convenient,stable capability.
f.Adopt high speed stepper motor and drivers,and two motors for Y axis.Max speed is 35M/MIN. Auto Aligning System. With air cooling spindle highly upgrade the processing speed.
No.2 Application

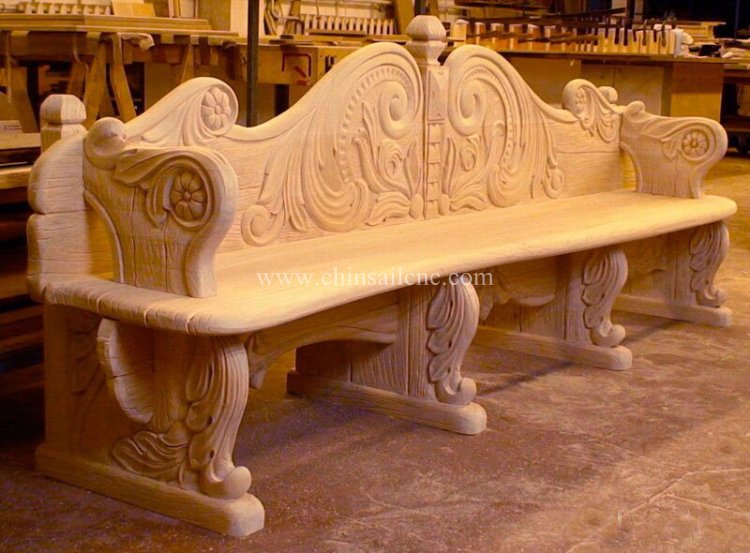

a. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
b. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.

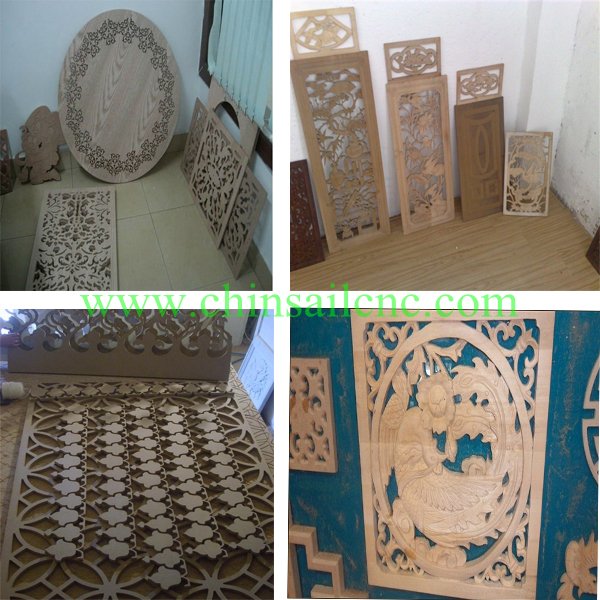

c. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
d. Decoration industries: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
No.3 Parameters
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot vacuum Table |
| 5 | Frame | Welded Steel Structure |
| 6 | X, Y Structure | Helical Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| 9 | Max. Rapid Travel Rate | 33000mm/min |
| 10 | Max. Working Speed | 25000mm/min |
| 11 | Spindle Power | 3KW water cooling spindle for both spindles |
| 12 | Spindle Speed | 0-18000RPM |
| 13 | Drive Motors | Stepper System |
| 14 | Working Voltage | AC380V V/50/60Hz,3PH (Option: 220V) |
| 15 | Command Language | G Code |
| 16 | Operating System | DSP control system(options: NCstudio/Mach3 ) |
| 17 | Collet | ER20 |
| 18 | X,Y Resolution | <0><!--0--> |
| 19 | Software Compatibility | Type3, Artcam Software |
| 20 | Running Environment Temperature | 0 - 45 Centigrade |
No.4 After-sale service
1. Guarantee for 2 years exluding comsumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery , operation disk was included. If there is also any questions, pls kindly tell me
7. We have manual instruction and CD (Guiding Videos) for Software's Installing amd Operateion and Machine's Using and Maintaining.
8. Free installation and fully test before sending and free training for operators, When you got the machine ,you can use it directly.
No.5 Related models :CXM1325, CXM1530, CXM2030, CXM2040 etc
