hybrid cut laser machine CXJ1390-H
Hybrid cut laser machine is professional in cutting metal and nonmetal, it can cut carbon steel, stainless steel, wood mdf, acrylic leather etc No.1 Features1、With new material belt mold,which is high
Send inquiry
Hybrid cut laser machine is professional in cutting metal and nonmetal, it can cut carbon steel, stainless steel, wood mdf, acrylic leather etc
No.1 Features
1、With new material belt mold,which is high accurate and longer life.
2、Laser tube is separated with the working table, this make sure laser tube safety and laser path clean.
3、All the switches the plug base and other connections are not bulgy of surface of the machine, this make sure safety of the workers.
No.2 Application

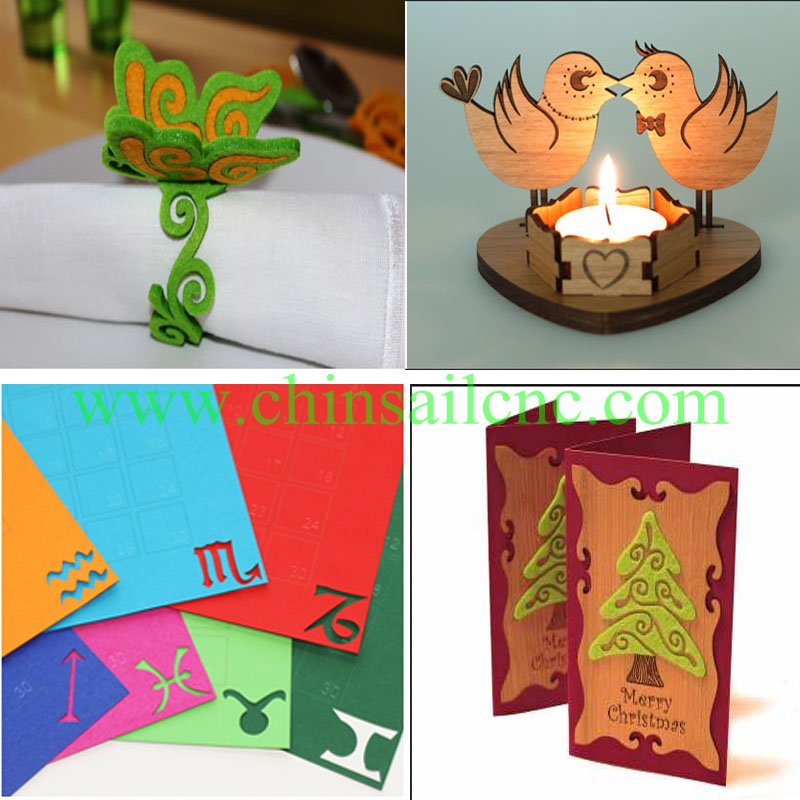

Furniture manufacturing, electronic component,thermorytic and ventilation pump,acrylic, wood,bamboo ware,sign,and many other metal non-metal material processing industry.
No.3 Parameters
| Model | CXJ1390-H |
| cutting area | 1300x900mm |
| Laser power | 150W (130W/220W/280W/300W for option) |
| Laser type | CO2 Laser tube |
| Cutting speed | 0-50000mm/min |
| Resetting positioning accuracy | 0.01mm |
| Power supply | 110V/220V/50HZ/60HZ |
| Operating temperature | 0 - 45°C |
| Operating humidity | 5-95% |
| Min. shaping character | English 1.0x 1.0mm |
| Graphic format supported | PLT,AI,DXF,BMP,DST |
| Software supported | CorelDraw, PhotoShop, AutoCAD, TiandaoTajima |
| Driving system | stepper motor |
| Cooling mode | Water chiller CW5200 and water protection system |
| Gross Weight: | 500KG |
| Shipping Dimensions | 1860*1450*1400mm |
| Optional Spare Parts | Up-down clump, Rotary System |
| Recommended Spare Parts | Laser Tube and Lens |
No. 4 Service for Laser Machine
*We test equipment at least 3-5 days to ensure our users to receive perfect machines.
*We guarantee that every part of machine is totally new and clean before delivery.
*We supply 6*18 after sale service from our Service Department.
*WE can send technical person to help customer install machine on site
*We provide many online service such as Skype, MSN, QQ, What'sapp, Wechat, Email, and Video call
*We provide CD Video to show how to operate the laser machine
No.5 Simple models: CXJ9060-H/1290-H/1390-H/1490-H/1610-H/1325-H/1525-H etc
