hybrid cut laser machine CXJ1325-H
No.1 Featuresa. Follow-up laser headAdvantage: It is no need to adjust the distance by hand which is very troublesome. It is not only simple,convenient, and easy to adjust, but also with high efficie
Send inquiry
No.1 Features
a. Follow-up laser headAdvantage: It is no need to adjust the distance by hand which is very troublesome. It is not only simple,convenient, and easy to adjust, but also with high efficiency.
b. Ruida 6332 control systemAdvantage: It is suitable for metal and non-metal cutting machine, USB offline, English version, ery easy to learn and operate.High speed USB data transmission interface, download speed is up to 500 KB/s.Graphic format support: PLT,DXF, BMP, JPG, AI etc
c. 3mm Cold-rolled steel welded machine bed, strong and running stable.
d. Aluminium blade table: to process hard materials like acrylic, wood and so on.
e. Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.
f. High accuracy stepper motors and drivers. Belt transmission.
g. Tiwan Hiwin Linear square guide rails, higher precision.
h.A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick.
No.2 Application

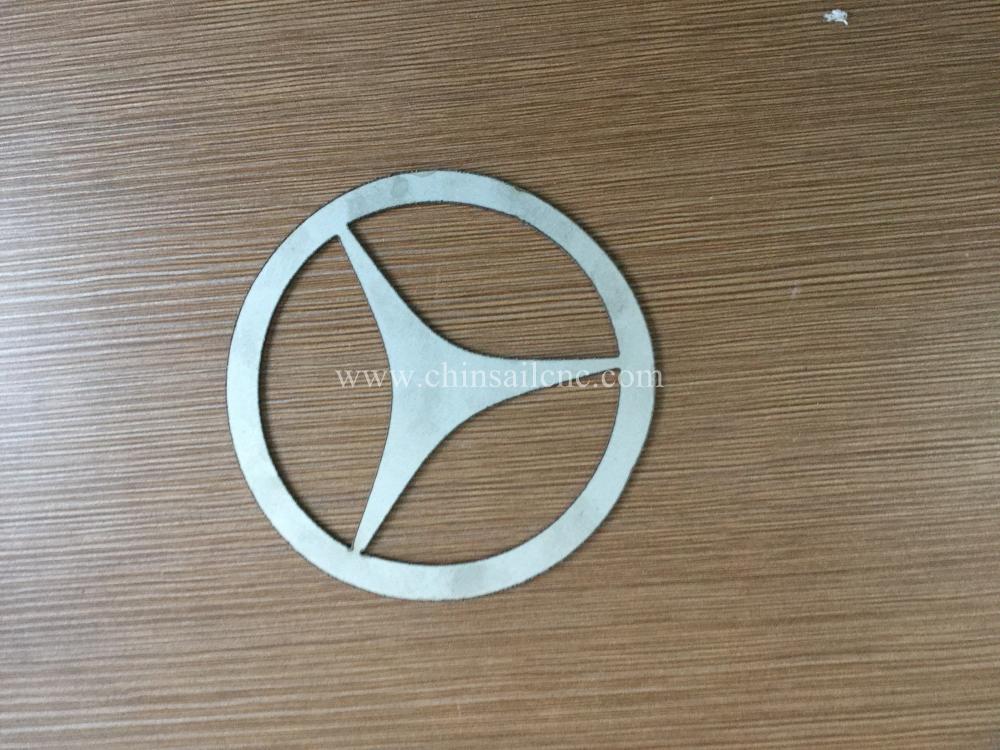

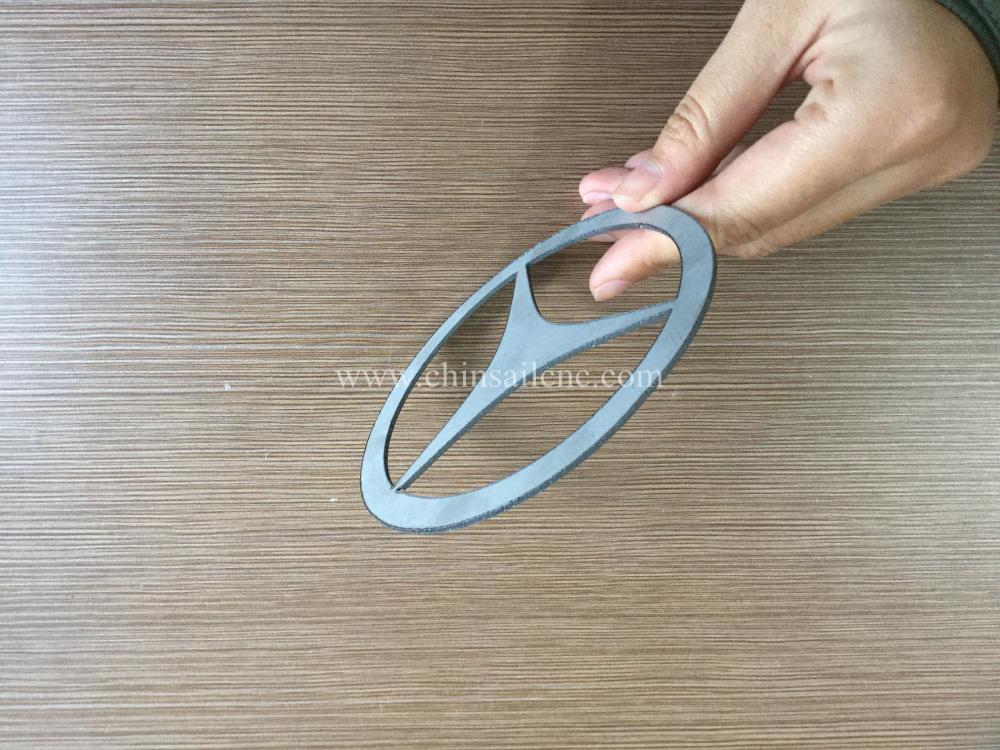

Mainly for stainless steel, carbon steel 0-3mm thickness, Cutting, engraving and punching soft materials, such as ,clothing, leather, carpet, suede fabric, denim jeans, stuffed toys, textiles, industrial fabrics etc.
| Material | Cut | Engrave |
| Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
| Organic board | Double color sheet | √ | √ |

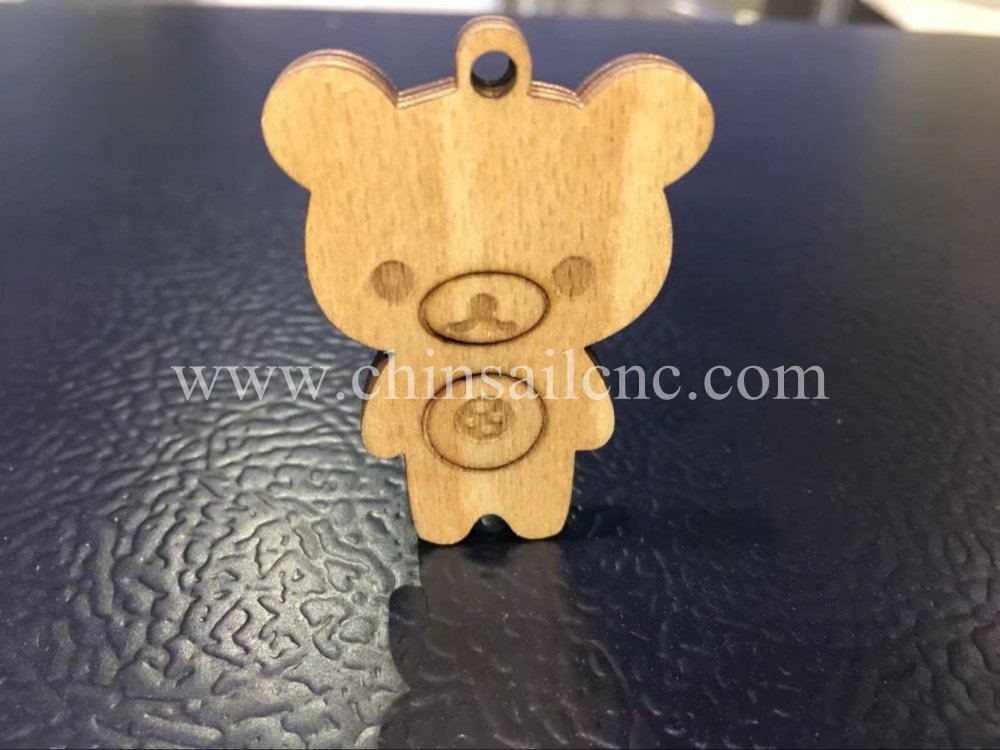

| Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
| Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
| Fabric | Cloth | Textile | √ | √ |
| Carpet | Mat | Rug | Wool Felt | √ | √ |
| Paper | Cardboard | Chipboard | Press Board | √ | √ |
| Ceramic | Tile | Marble | Glass | √ | |
| Metal | √ | √ |
| Fiber Glass | Filter Cloth | √ | √ |
No.3 Parameters
| Model | CXJ1325-H |
| Working area | 1300*2500mm |
| Laser power | Beijing Reci W6(130-150W)/W8(150-180w) Yongli280w |
| Materilas | Metal and non-metal |
| Table | Blade table |
| Repeat positioning accuracy | ≤±0.01mm |
| Positioning accuracy | ≤±0.05mm |
| Control system | Ruida 6332M |
| Supporting format | PLT, DXF, AI, DST, BMP, etc. |
| Software support | Metal cut |
| Working voltage | 220V50HZ/110V |
| Optional parts | up-down table |
| rotary device for cylinder materials |
No.4 After-sale service
a. Guarantee for 2 years (10 months for laser tube) excluding consumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
b. Lifetime maintenance free of charge.
c. Free training course at our plant.
d. We will provide the consumable parts at an agency price when you need replacement.
e. 24 hours on line service each day, free technical support.
f. Machine has been adjusted before delivery, operation disk was included. If there is also any questions, pls kindly tell me.
g. We have manual instruction and CD (Guiding Videos) for Software's Installing and operation and Machine's Using and Maintaining.
No.5 Related models :CXJ9060-H/1290-H/1390-H/1490-H/1610-H/1325-H/1525-H etc
