2 heads hybrid cut laser machine CXJ1390-H-2
No.1 Features a. Two heads:(1)Hybrid laser cutting head (2)laser cutting and engraving headb. It is mixed by hybrid laser cutting machine and laser cutting machine.It has hybrid laser cutting machine
Send inquiry
No.1 Features
a. Two heads:(1)Hybrid laser cutting head (2)laser cutting and engraving head
b. It is mixed by hybrid laser cutting machine and laser cutting machine.It has hybrid laser cutting machine and laser cutting machine advantages.It can cut and engrave on metal materials and nonmetal materials.
c. Laser tube:It has two laser tube which can suppose the two heads working.Beijing Reci laser tube has a long service about 10000hours.It shall be changed free or charge when if any problem during the warranty period.
e. Optimization of Arc: Stable S-style speed control software, quick and stable motion, which go very well with the automatic laser compensation, all these help the machine do a good job when cutting different parts, like straight lines, angles.
f. USB Interface: It supports the USB interface, with the GS series laser engraving machine, it's not necessary to connect to the computer, in this case, it not only enjoys high anti-interference, but also you can use only one computer to control many laser engraving machines.
g. Storage function: The mainboard has EMS Memory which enables the user to store more than 100 files.
h. Automatic Protection: There's automatic smoke/dust-ejecting system, water cooling system, if there's no water or the water flows in opposite direction, there'll be no laser, which protects the laser tube in an effective way.
No.2 Application
a. Nonmetal industries: acrylic products, logo signs, electronics, furniture, toys, flooring, advertising display, gifts, models, industrial panel.
b. Metal cutting industry: sheet metal structure, high and low voltage electrical cabinet making, hardware, tools, advertising signs, metal crafts, decorating, automotive, petrochemical, medical, mechanical parts, electrical meter parts, saw blades, spring-chip and other industries.

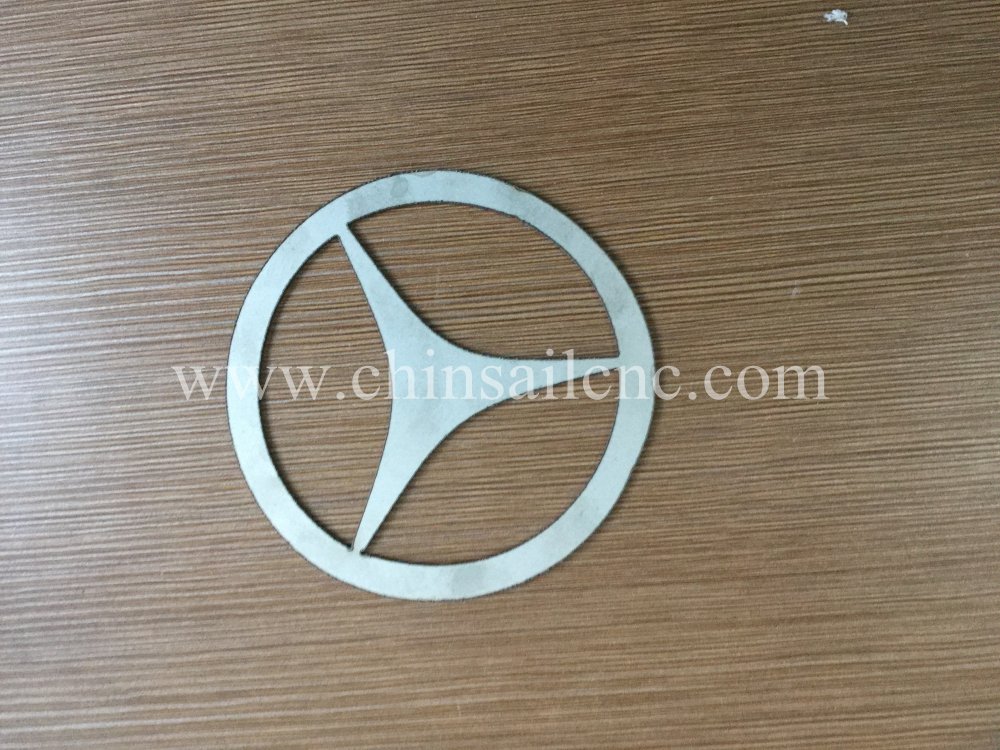

c. Metal materials: stainless steel, carbon steel, alloy steel, spring steel and other metal plates.

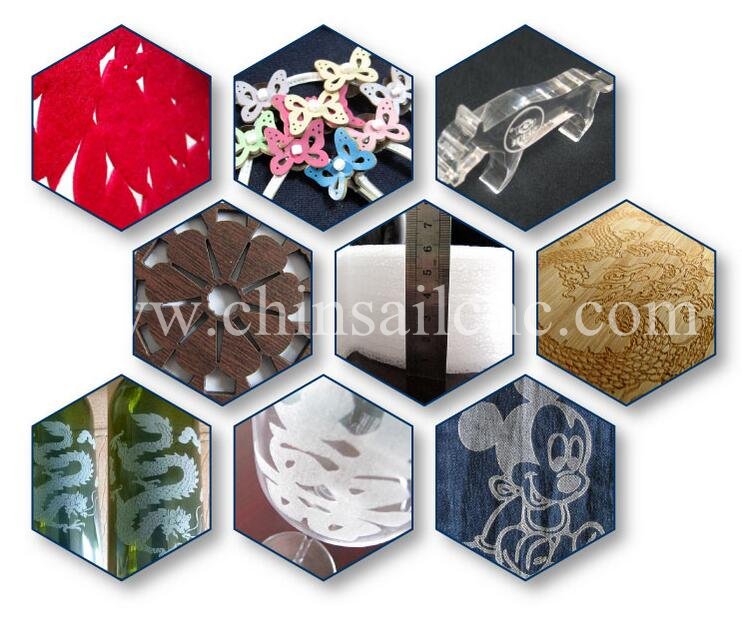

d. Non-metallic materials: acrylic, wood, plastic panels,paper,leather and more.
No.3 Parameter of hybrid laser cutting metal machine
| NO. | Model | CXJ 1390H-2 laser cutting machine | Optional |
| 1 | Laser tube brand | Reci brand | /EFR/Yongli |
| 2 | Working area | 1300*900mm | Can be made by your requirement |
| 3 | Working table | blade | honey comb table /Up&down work table |
| 4 | Laser power | 130W-150w and 60W for engraving head | 180w /260w |
| 5 | Guide rail | HIWIN linear square guide rail from Taiwan | |
| 6 | Transmission method | Fulong belt from shanghai | |
| 7 | Drive system | Leadshine driving system and stepper motor | Servo motor |
| 8 | Cooling system | Water chiller | Water chiller |
| 9 | Control system | Ruida controller | Leetro control system |
| 10 | Graphic format support | PLT, DXF, BMP, JPG ,AI and etc | |
| 11 | Control software | Coreldraw, Photoshop, AutoCAD, | |
| 12 | Working environment | 0-45°C | |
| 13 | Operating Humidity | 5-95% | |
| 14 | Power supply | 220v±10%/10A | |
| 15 | Package size | 1920*1650*1210mm | |
| 16 | Gross weight | 550kg |
No.4 After-sale service
1 Two year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2 Life time maintenance free of charge.
3 Free training course at our plant.
4 18 hours on line service each day, free technical support.
5 Machine has been adjusted before delivery.
