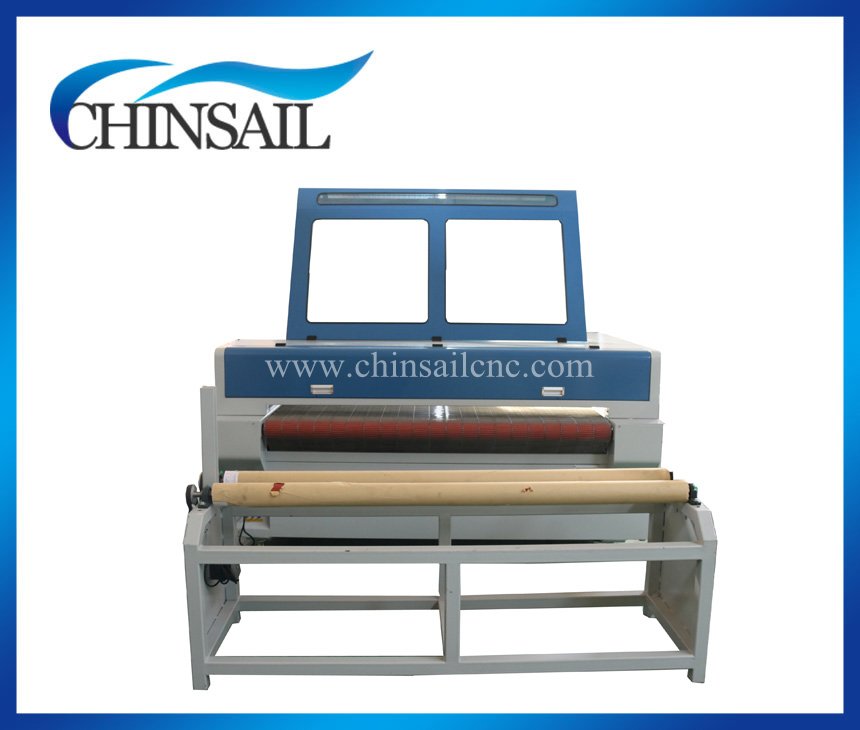

auto-feeding laser machine CXJ1610
No.1 Features1. With Auto-feeding function, can processing materials totally automatically, very popular and practicable2. With Roller, that can put fabric and other materials in rolls3. Double heads
Send inquiry
No.1 Features
1. With Auto-feeding function, can processing materials totally automatically, very popular and practicable
2. With Roller, that can put fabric and other materials in rolls
3. Double heads or single head both is ok; double heads is more popular, as more faster
No.2 Application
Can be used for engraving and cutting fabric, leather, cloth and other materials with auto-feeding function, totally automatically
No.3 Parameters
| Description | Auto-feeding fabric laser cutting machine | ||
| Working area | 1600*1000mm | ||
| Laser tube power | Reci W2 (90w-100w) | ||
| Table | Honeycombe table | ||
| Max. engraving speed | 1000mm/s | ||
| Max. cutting speed | 400mm/s | ||
| Laser type | co2 laser tube RECI | ||
| Min. forming character | 1*1mm | ||
| Max. scanning precision | 0.0254mm | ||
| Positioning precision | 0.01mm | ||
| Laser tube cooling | water cooling | ||
| Power supply | 110V 220V 50/60Hz | ||
| Drivers and motors | Leadshine drivers M583 and stepper motor 450A | ||
| Software | Ruida software | ||
| Cooler | water pump | ||
| Desing software | CorelDraw, AutoCAD, Photoshop | ||
| Operating software | Windows98/2000/XP/VISTA/7 | ||
| Machine dimension | 2150*1420*1110mm | ||
| Packaging dimension | 2280*1540*1220mm | ||
| Other options | Red dot pointer; auto-focus | ||
No.4 Related models :CXJ9060/1290/1390/1490/1610/1325/1525 etc
