laser machine 1390 A1
No.1 Featuresa. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.b. Imported high precision linear guid
Send inquiry
No.1 Features
a. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
b. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
c. Professional Honeycomb or Blade table, which meet the needs of diversified laser process .
d. Water Cooling System with Alarm Protection, adopt CW3000/CW5000/CW5200/CW6000 water chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
e. Equipped with luxury Consumables, Singapore Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube for your choose, makes high efficiency and steady.
f. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
g. Red Light Pointer realizes the exact position without laser.
h. Optional Imported Ball Screw transmission, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.

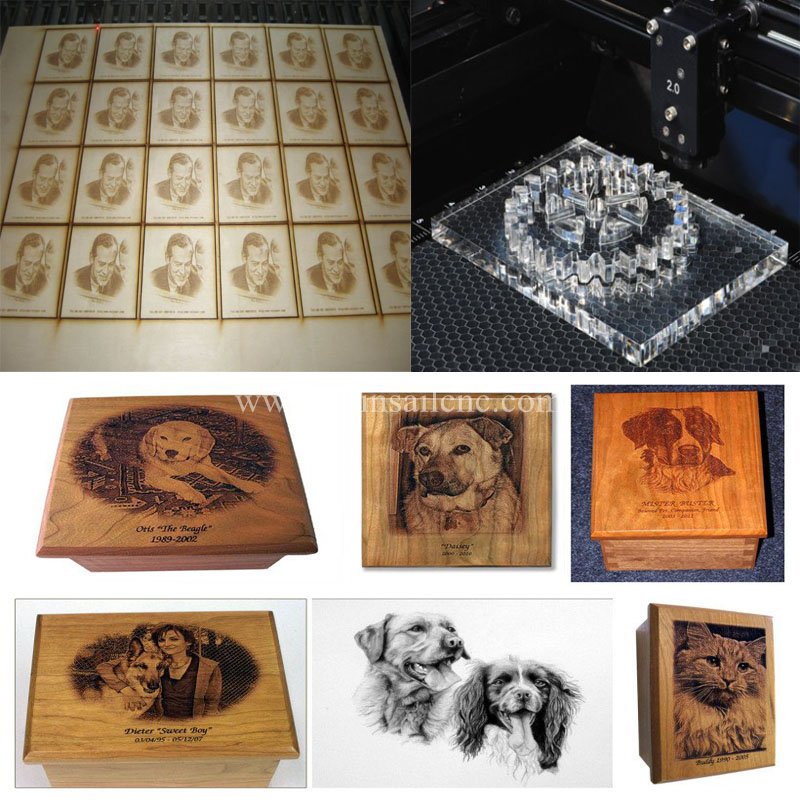

No.2 Application
a. Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
b. Woodworking: MDF,wooden mould, wood planks,bamboo, density board
c. Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts, crystal,glass,ceramic,stone,metal coating,etc.
d. Clothing: leather,cloth,texitle,shoes,fabric,etc
No.3 Technical parameters
| NO. | Model | CXJ1390 |
| 1 | Laser medium | CO2 |
| 2 | Working area | 1300x900mm(customized) |
| 3 | Working table | Blade table |
| 4 | Laser power | 90W (100W /130W/ 150W/ 280W/ 300W) |
| 5 | Power Supply | 220V/50Hz |
| 6 | Min line width | ≤0.15mm |
| 7 | Positon accuracy | 0.01mm |
| 8 | Repetition accuracy | 0.02mm |
| 10 | Guide rail | linear square guide rail |
| 11 | Transmission method | Dongfeng belt from Taiwan |
| 12 | Drive system | Yako driving system and stepper motor |
| 13 | Cooling system | Water-cooling |
| 14 | Control system | Ruida controller |
| 15 | Control software | Coreldraw, Photoshop, AutoCAD, Tajima |
| 16 | Graphic format support | PLT, DXF, BMP, JPG ,AI and ect |
| 17 | Working environment | 0-45°C, |
| 18 | Operating Humidity | 5-95% |
| 19 | Optional Parts | Up-down work table(included) Rotary System |
No.4 Service
1、Have you exported to our country?
We have been in this field for 12 years,we have CE,CO,ISO,FDA,SGS certificates,have exported to Europe, South America, Arab, Asia, Russia, Spain, Australia and many other countries.
2、If machine have any problem after I receive it, how can I do ?
24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.
3、How about the documents after shipment?
We will send you all documents for customs clearance including Packing List, Commercial Invoice, Bill of Landing, and other certificates as required by clients to your Email.
No.5 Related models :CXJ9060/1290/1390/1490/1610/1325/1525 etc
