metal plate and pipe fiber laser cutting machine
No.1 Machine features of tube and plate fiber laser cutting machine1). High performance.fiber transmission can make sure the same quality cutting effect in every point of the material.2). High efficie
Send inquiry
No.1 Machine features of tube and plate fiber laser cutting machine
1). High performance.fiber transmission can make sure the same quality cutting effect in every point of the material.
2). High efficiency,fast cutting speed.photoelectric conversion rate about 35%.
3). Low gas consumption.it has the cutting technology specially for steel board and produce no gas when cutting .
4). Low power consumption .environment -friendly and energy -saving,reduce 20%-30% power compard with co2 cutting machine.
5). Maintenance-free ,fiber transmision without reflection lens,can save time in light path adjustment fiber exerts its features better in thin metal sheet cutting.
No.2 Application

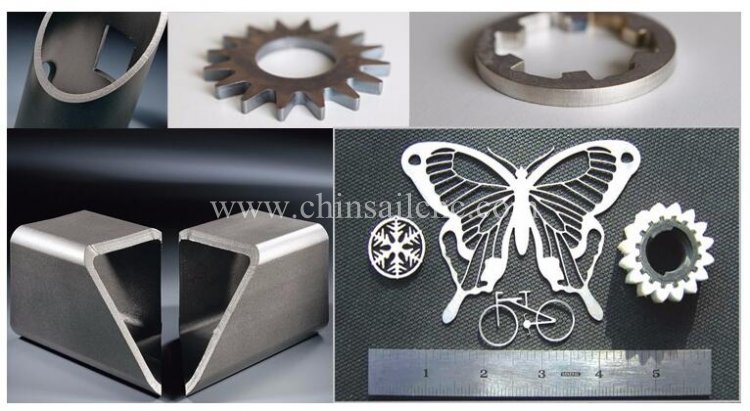

Fiber laser specially cutting middle thick and thin Materials such as stainless steel,mild steel/carbon steel,copper,alloy steel,spring steel, galvanized plate,etc.
Applicable fields:aviation,aerospace,electronics,appliances,subway accessories,automobile,machinery,precision parts,ships, saw blades，elevators,craft gifts,decoration,advertising...
No.3 tube and plate fiber laser cutting machine
No. | Name | origin\brand | Model |
1 | Welded Heavy duty Machine frame | Work size | 1530(1325 1515 1545 optional) |
2 | Tube size | 6m | |
3 | Rotary | Auto(Front electric rear pneumatic) | Tube clamping range 20-215 |
4 | Outsourcing of sheet metal | Standard | Integrated outsourcing |
5 | Split outsourcing | ||
6 | Helical gear rack | 1 )KH 2 )YYC 3 )Gambini 4 )atlanta | 2M |
7 | |||
8 | |||
9 | Linear square rails | 1 )Hiwin 2 )PMI 3 )THK 4 )ABBA | |
10 | |||
11 | reduction gears | 1 )Japan Xinbao 2)France MOTOVARIO 3 )Germany Stober | |
12 | |||
13 | Servo motor | 1 )Fuji 2 )YASKAWA 3 )PANASONIC 4 )Mitsubishi | Y3:1800W |
14 | W:1300W | ||
15 | Cutting head | 1 )RAYTOOLS 2 )Asmit 3 )WSX 4 )Lasermach 5 )Precitec | D18(manual focus) |
16 | Water chiller | S&A | CWFL-1000AN AC220-240 50Hz |
17 | Control system | WEIHONG / Bochu controller FSCUT3000 | |
18 | proportional valve | Air TAC | |
19 | smoke sucker | ||
20 | voltage stabilizer | ||
21 | air course | Two line | |
No.4 After-sale service & support
1. The machine is with user manual and video to show how to use the machine. We also can send our engineer to the customers’ place to help install,test the machine,and to train the customers’ technicians ,our engineer can stay at customers’place for 5-7 days,customers should pay the round-trip air tickets/hotels/food fees for our engineer.
2. Whole machine warranty is 3 years. Laser source warranty is 2 years.
3. The customers’ technicians can keep in touch with our engineer at any time,through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
