fiber laser marking machine CXF20W
No.1 Features 1. Marking area can be 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm. Different field lens, different marking area. Table size is not same as marking area.2. XY table which can m
Send inquiry
No.1 Features
1. Marking area can be 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm. Different field lens, different marking area. Table size is not same as marking area.
2. XY table which can move on the flat dimension, it can move left and right, forward and back. For three dimension table, it can not move on the flat dimension, but also move up and down, suitable for handheld type fiber laser marking machine.
3. Laser source. Fiber laser marking machine can be different laser source, different means "different watt", "different brand". For different watt, higher watt laser source has higher speed, 50W>30W>20W. For different brand, CAS/RAYCUS/MAX/IPG/JPT MOPA can be choosed.

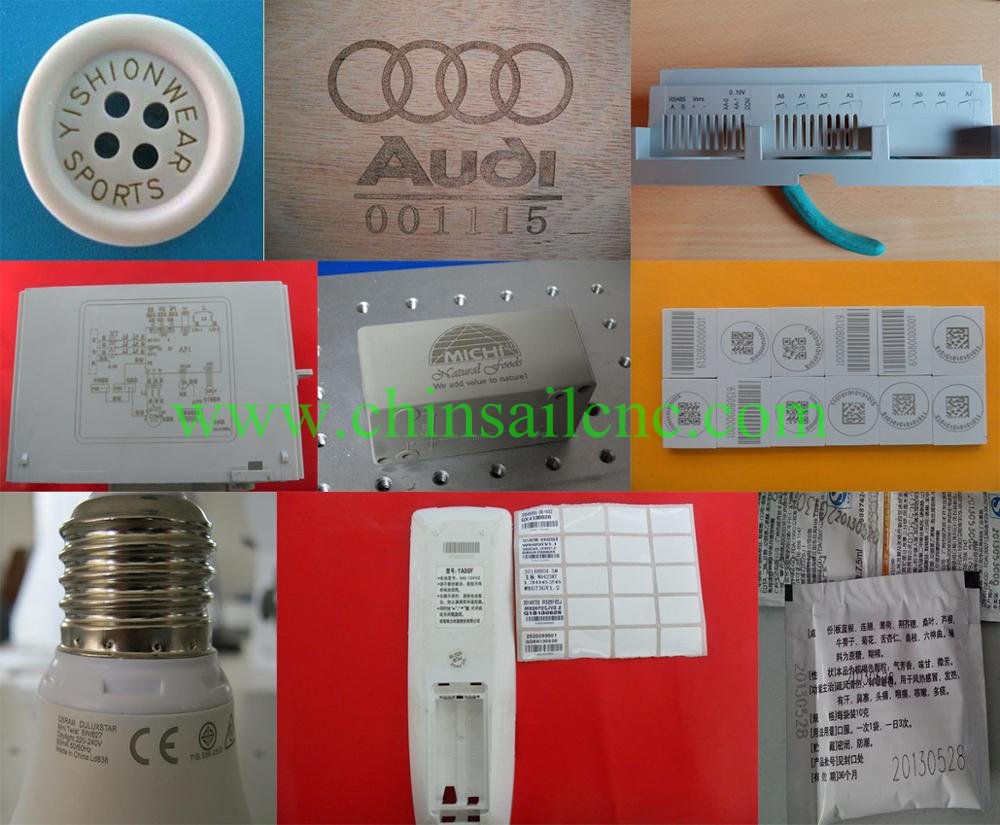

No.2 Application
Fiber laser marking machine is widely for stainless steel marking, carbon steel marking, iron making, aluminum marking, Copper marking, anodized and coated material materials marking, and not-metallic such as nylon marking, ABS/PVC/PC board, hard plastic marking, rubber marking, resin marking, ceramic marking etc., in the industries of electronic and communication products, IC products, electric lines, cable computer computer components and electric appliance, precision parts, hardware tools, instrument appliance and so on.

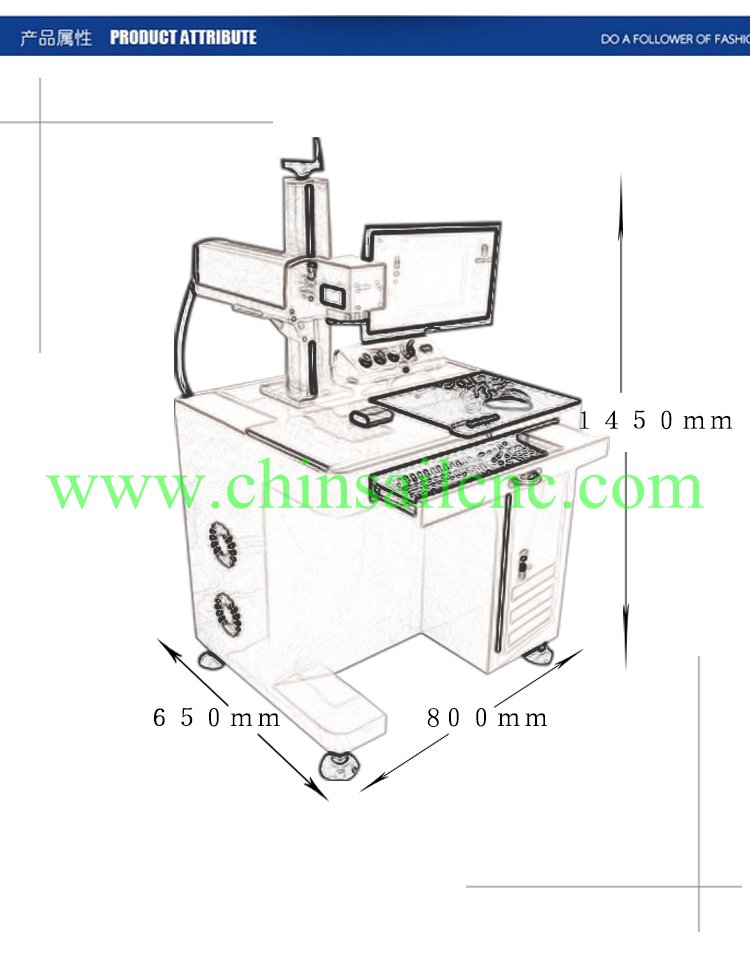

No.3 Parameters
| LXF-20W | CXF-30W | CXF-50W | |
| Product name | Fiber marking CXF-20W | Fiber marking CXF-30W | Fiber marking CXF-50W |
| Max Working area | 300*300mm | 300*300mm | 300*300mm |
| Laser source | CAS/RAYCUS/MAX/MOPA | CAS/RAYCUS/MAX/MOPA | CAS/RAYCUS/MAX/MOPA |
| Laser power | 20watt | 30watt | 50watt |
| Marking thickness | Depends on materials | ||
| Marking speed | 50W>30W>20W | ||
| Warranty | 2 years | ||
| Packing size | 80*92*156cm | ||
| Optional parts | Acrylic protective cover Rotary (Diameter 50mm, 80mm, 100mm) Fume extractor Protective glasses Working light | ||
No.4 Package & Shipping
1. All of our machines will be adjusted before delivery and shipping.
2. Packed by plastic and standard plywood cases. Plastic is for preventing water and dust, standard plywood cases preventing worms, besides, there is no need to fumigate the cases.
3. Delivery by sea, by air or by land. Please kindly tell me which way do you want to choose so that I can check the freight for you.
No.5 Our after-sale service
1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 18 hours on line service and email each day, free technical support.
5. Machine has been adjusted before delivery. We will take machine photos and make machine working image for you , after getting your agreement ,then we will book a ship.
6. Provide technical services to the door (We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.
No.5 Related models: CXF20W, CXF30W, CXF50W
