portable fiber laser marking machine Model 2
Electric door and protective cover, enviroment friendlyNo.1 Features1.High quality fiber laser marking machine adopts international most advanced technology and the laser source is lifetime can reach
Send inquiry
Electric door and protective cover, enviroment friendly
No.1 Features
1.High quality fiber laser marking machine adopts international most advanced technology and the laser source is lifetime can reach 100,000 hours,
2.Printable numbers, characters, letters, graphics support automatic coding, serial number, batch number, date, barcodes,two dimensional codes automatically jump number.
3.Our program has a variety of power fiber laser, you can get different laser effects ( metals, plastics, ceramics, etc.) on most materials.Laser Applications.
4.Support PLT, PCX, DXF, BMP and other documents, directly using SHX, TTF font.
5.You may need to set the automatic serial number, date, time, according to the production.
6.Powerful fill feature, filling the annular support.
7.Open multiple languages, can easily support world languages.
8.Automatic segmentation of text function, it can adapt to the complex processing conditions.

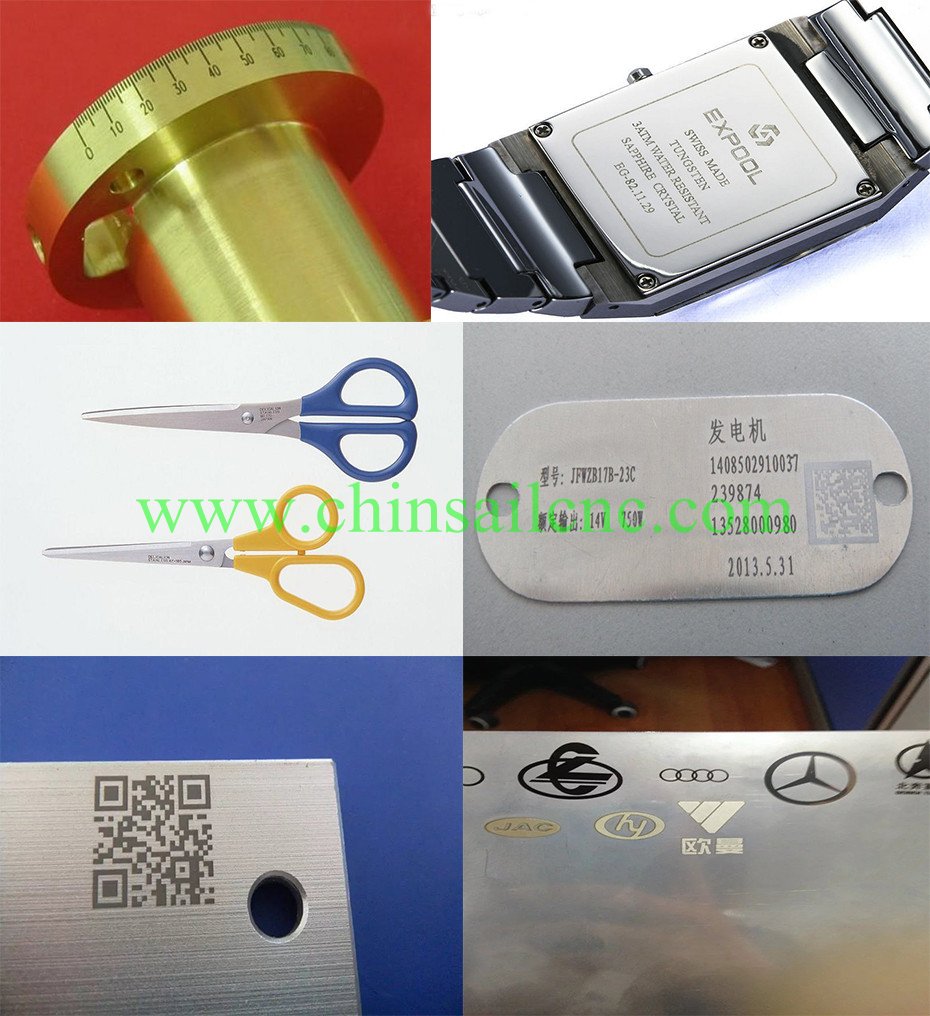

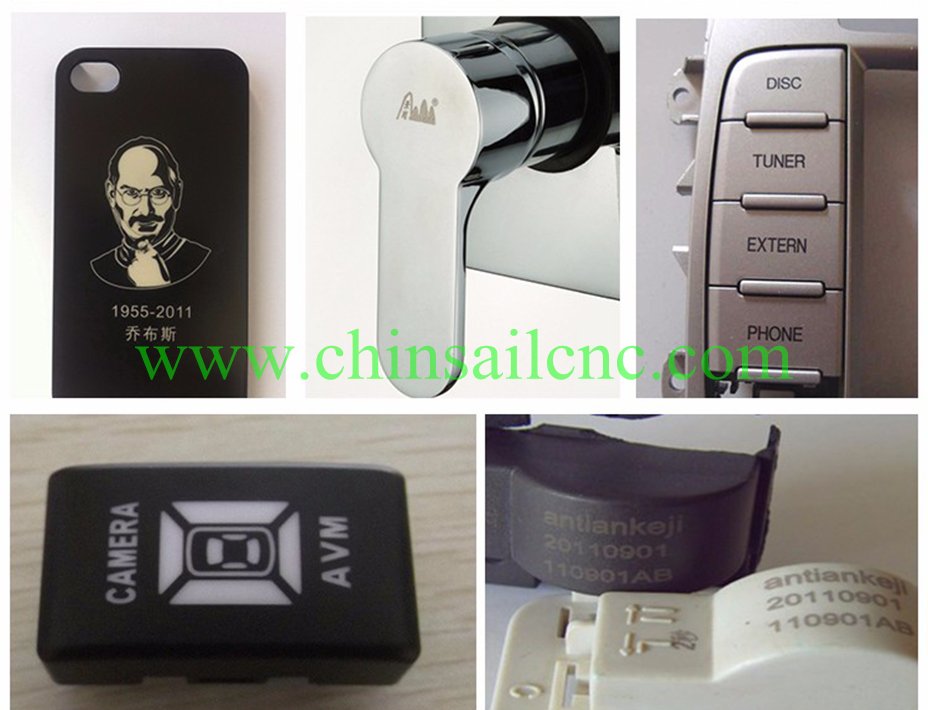

No.2 Application
Applicable Material
All metal , some non-metal material marking such as nylon, ABS, PVC, PES Applicable Industry
Electronic components, integrated circuits, mobile communications, medical equipment,
eyeglasses and clocks, jewelry, auto parts, plastic buttons
No.3 Parameters
| Technology parameter | |
| Model | CXFiber-20W |
| Laser Power | 20W(30w/50w optional) |
| Working Area | 110*110mm / 150*150mm/175*175mm / 200*200mm/300*300mm |
| Cooling Mode | Air Cooling |
| Laser Wavelength | 10.64um |
| Response Time | 0.5ms |
| Frequency of pulse | 20-100KHz |
| Marking Depth | ≤0.4mm |
| Marking Speed | ≤7000mm/s |
| Marking Lines | 1-10 lines |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.15mm |
| Repeatability Accuracy | ±0.002mm |
| Resolution Ratio | 0.1mm |
| Marking Content | Text, pattern, date, bar code, etc |
| Operation System | Microsoft Windows XP or Windows 2000 |
| Control Software | EZCAD Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Unit Power | ≤1.2KW |
| Operation Temperature | 5°C-40°C |
| Relative Moisture | ≤ 90%, no fog |
| Supply Voltage | 220V/50Hz |
No.4 Guarantee
1.24/18 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
2. Two-year warranty is provided.
3. Professional staff for installation and training if needed.
4. Spare parts are supplying on time or doing some inventory if promising certain sales volume.
5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
6. If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.
No.5 Related models: CXF20W, CXF30W, CXF50W etc.
