fiber laser marking machine Model 4
No.1 Brief introduction Pneumatic door, protective door, environment friendlya. CXF-20W lasr machine for stainless steel, metal plate,aluminum, silver, gold with lower price.b. Fiber Laser Series prov
Send inquiry
No.1 Brief introduction
Pneumatic door, protective door, environment friendly
a. CXF-20W lasr machine for stainless steel, metal plate,aluminum, silver, gold with lower price.
b. Fiber Laser Series provide highest marking results ,which is capalbe of providing one kind of solution for your marking needs.
c. Print to the laser directly from EZ-CAD software program for easy job setup, and mark an entire table full of parts at one time.
No.2 Application

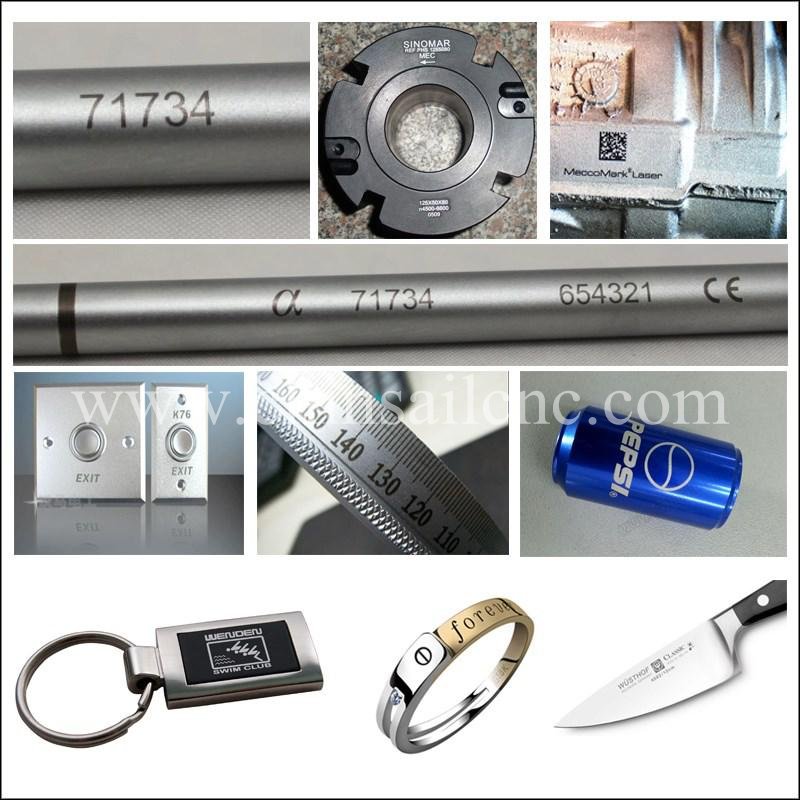

Fiber Laser Marking Machine are widely used in the marking for auto ,motocycle parts,packaging for goods,beverage,cigarette. nameplate, jewellery, watches. It is capable of achieving all kinds of images. Our fiber laser beam can mark and cut your designs on bare metal and some plastics.
The metal materials aluminum,stainless steel,copper,sliver,gold,jewelry, The nonmetal plastic materials like PVC, Polycarbonate ,etc.
The industries like advertising logo marking, glasses frame printing,code marking, Serial Number marking,business card marking, ID card marking,Animal ear tag marking.
Laser marking machine print patterns on all the materials you want!
No.3 Technical Parameters
| Technology index | CXF-20/30Wwith protective cover | |
| Laser parameters | optical laser | CAS laser ( MAX, RAYCUS, IPG, MOPA optional) |
| Laser wavelength | 1064nm | |
| Average output power | 20w/30w/50w | |
| Whether or not to bring the light isolation | bring | |
| Modulation frequency range | 20kHz~80kHz | |
| Galvo parameters | Maximum speed | 7000mm/s |
| resolution | 0.001mm | |
| Repositioning precision | ±0.003mm | |
| Optical output characteristics | Marking area | 110*110,150*150,175*175, 200*200,300*300mm |
| Minimum line width | 0.01mm | |
| Minimum height of characters | 0.2mm | |
| Cooling system | Cooling way | Air cooling |
| System properties | Laser power supply | 0.5KW/AC220V/50Hz~60Hz (optional 110V) |
| Manual working table stroke | Movements itinerary 285 mm (desktop type) | |
| Environmental requirements | 0 ~ 35 ° C, 90% or humidity | |
No.4 After-sale service
1. International quality certificate, FDA, CE, SGS, ISO9001
2. 100,000 hours lifetime, free maintenance.
3. 24 months warranty against manufacture defect.
4. Engineers available to service machinery overseas.
5. Free training for machine installation and operation.
6. Free samples marking of customer provided.
7. 18 hours technician professional and timely after-sale service.
No.5 Related models CXF-20W, CXF-30W, CXF-50W etc
