portable fiber laser marking machine Model 1
No.1 Featuresa. Easy Operate without route maintenanceb. Higher precision,faster speedc. Air cooling, Small size,low power consumption d. Red light preview: show the marking position before laseringe.
Send inquiry
No.1 Features
a. Easy Operate without route maintenance
b. Higher precision,faster speed
c. Air cooling, Small size,low power consumption
d. Red light preview: show the marking position before lasering
e. Rotary attachment optional Engrave and mark inside and outside ring jewellery
f. High temperature resistance perfect for marking medical equipment etc that requires sterilization
g. The durability & Finer Marking quality optimizes it for use in jewelry, mobile phones, and other items of value.
Computer Installed with Free Powerful software.
h. User friendly interface, easy operation set and deal different layers graphic in separate Support PLT,PCX, AL, DXF,
BMP,JPG formats file compatible AutoCAD, CorelDraw, Photoshop etc software Automatic serialization, date coding
letter, symbol, pattern, figure, image, bar code,2D code auto arrangement and amendment

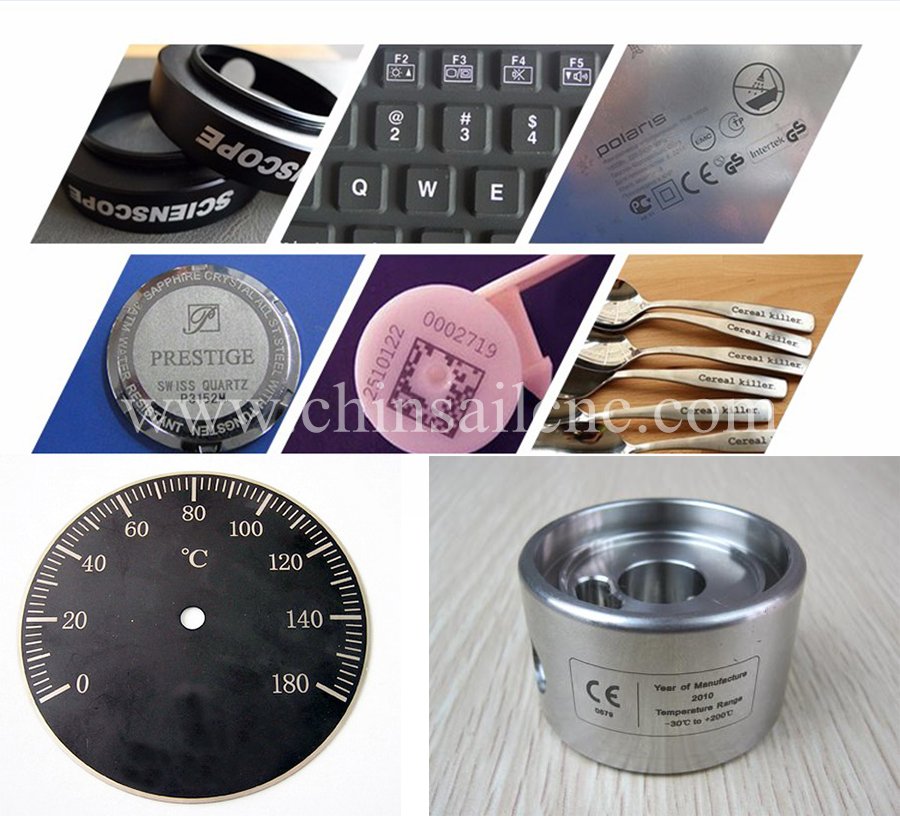

No.2 Application & Samples
Applicable Industry
Mobile phone keypad,plastic translucent keys, electronic components, integrated circuts(IC),electrical appliance,
communicaton products,sentary ware,tools,accessories,knives,eyeglasses and clocks,jewelry, auto parts,luggage buckle,
cooking utensils,stainless steel products and other industries..
Applicable Material
Metals(including rare metals),engineering plastics,eletroplating materials,coating materials,plastics,rubber,epoxy resin, ceramic,plastic,ABS,PVC,PES,steel,titanium,copper,and other materials.
No.3 Technical Parameters
| Machine Type | CXF-20W |
| Working Area | 110*110mm/150*150mm/200*200mm/300*300mm |
| Cooling Type | Air cooling |
| Laser power | 20W(optional 30W/50W) Raycus laser source |
| laser wavelength | 1064nm |
| Q-frequency | 20KHz~80KHz |
| Divergence | 0.3mard |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.15mm |
| Marking Depth | 0 ~0.5mm |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.001mm |
| Beam Quality | M2:1.2~1.8 |
| Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| Working Voltage | 220V±10%/50Hz/4A |
| Unit Power | <500w><!--500w--> |
| Use of the Environment | Clean and Dust Free or Dust less |
| Working Condition:Humidity | 5%-75%,Free of Condensed Water |
| Laser Module Life | >100000 hours |
| OPTIONAL | Rotary atatchment |
No.4 Related models CXF-20W, CXF-30W, CXF-50W etc
