laser welding rust cleaning and removal machine CXW-1.5KW 2KW 3KW
No.1 Features1. Non-contact cleaning, will nott damage the part substrate.2. Precise cleaning for precise positioning and precise size selection.3. Without any chemical cleaning solution, no supplies,
Send inquiry
No.1 Features
1. Non-contact cleaning, will nott damage the part substrate.
2. Precise cleaning for precise positioning and precise size selection.
3. Without any chemical cleaning solution, no supplies, safety and protect environment. Simple operation, turn on & cleaning by hand-held;
4. High cleaning efficiency, saving time.
5. Laser cleaning system is stable, almost no maintenance.
Laser cleaning machine is professional for metal material cleaning, coated cleaning, etc. Such as such as carbon steel,stainless steel, coated products, etc.

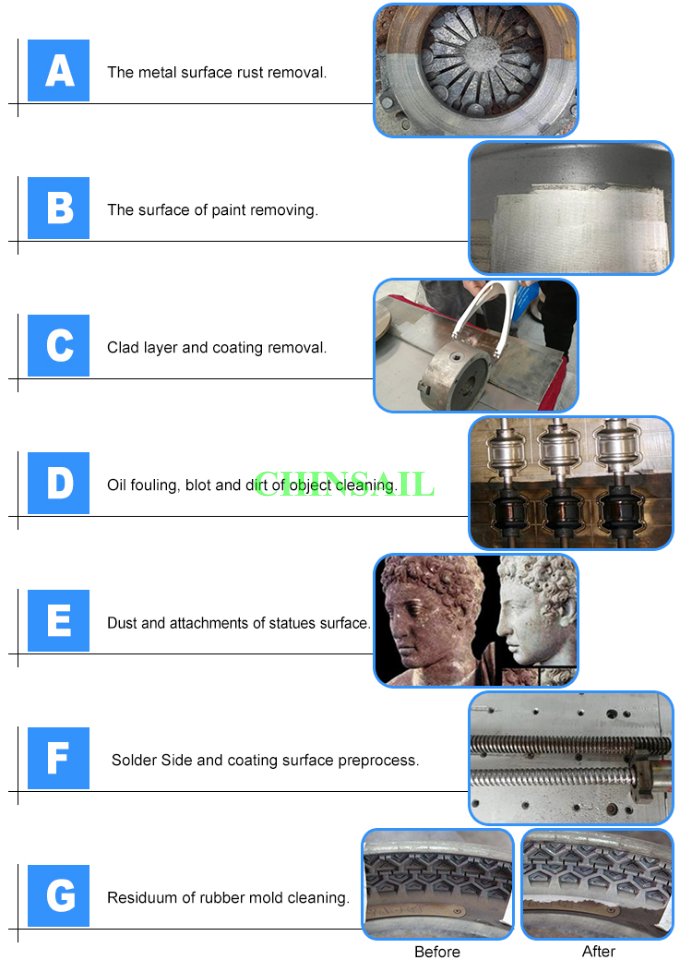

No.2 Advantages & Application
No.3 Technical parameters
Model | Laser welding, laser Rust Removal Cleaning Machine, laser cutting machine, 3 in 1 machine | |
Application | Used for clean the resin of subject surface, oil stain s, stains, dirt, rust, coating, coating, paint. | |
Laser wavelength | 1064nm-1080nm | |
Scanning width | 80-120mm | |
Fiber length | 5m( 10m customizable) | |
Laser power | 1500w/2000w/3000w | |
Moving way | Push by hand | |
Cleaning head weight | 2kg | |
Power adjustment range | 10%-100%(Adjustable gradient) | |
Voltage | Single-phase 220V ± 10%, 50 / 60Hz AC | |
Focus Spot Diameter | 0.08mm | |
Working Temperature | 0℃-40℃ | |
Enviroment Humidity | ≤80%(No condensation) | |
Setting Enviroment | Flat/without Vibration/without Impact | |
Total power | depends on the laser source power | |
No.4 After-sale service
1. Lifetime maintenance free of charge.
2. Free training course at our plant.
3 .We will provide the consumable parts at an agency price when you need replacement.
4. 18 hours on line service each day, free technical support.
5. Machine has been adjusted before delivery , operation disk was included. If there is also any questions, pls kindly tell me
6. 18 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.
