cnc plasma 1560 with drilling head
Optional parts: a. drilling head---------make hole on the plate,b. rotary axis: cut pipe / tubeNo.1 Featuresa. Welded structure of thickening square tube, together with Taiwan imported guide rail to e
Send inquiry

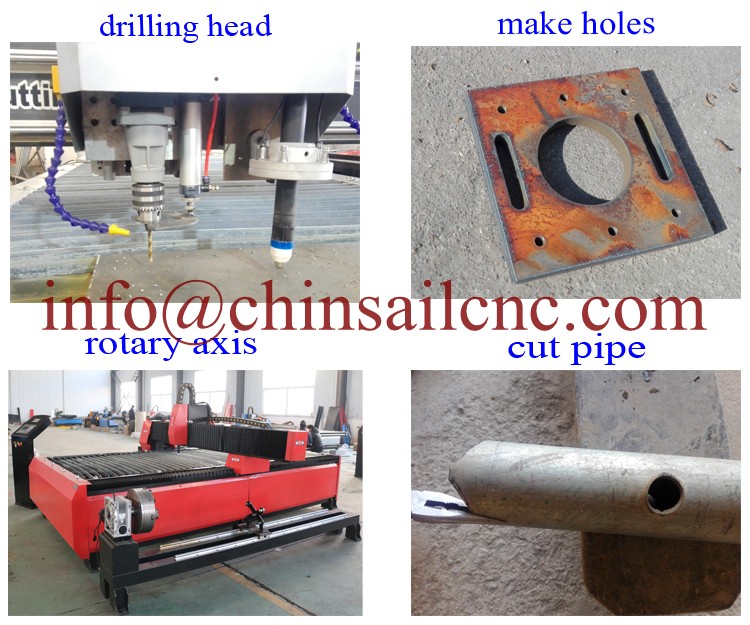

Optional parts:
a. drilling head---------make hole on the plate,
b. rotary axis: cut pipe / tube
No.1 Features
a. Welded structure of thickening square tube, together with Taiwan imported guide rail to ensure running speed and accuracy.
b. Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.
c. Power supply adjusts current according to different thickness of the material to ensure cutting materials without burr.

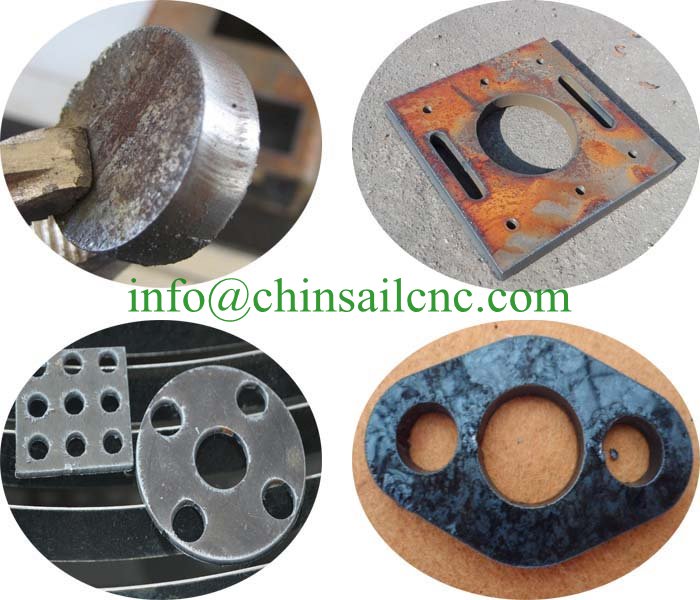

d. Processed Materials of small and neat kerf ,without secondary processing.
e. Advanced digital control system,large capacity storing function, convenient to read and process.
f. Compatible software: Fastcam
g. Applicable industry: advertising industry, arts and handicrafts cutting, metal plate cutting.
No.2 Application
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.
No.3 Parameters
| Model | CXP-1560 |
| Working Area | 1500*6000mm |
| Cutting speed | 8-15m/min |
| Repeat positioning accuracy | ±0.05mm |
| Process precision | ±0.35mm |
| Motor | Step motor |
| Cutting thickness | 0-30mm (depends on power supply) |
| Transmission model | Gear rack drive |
| Input voltage | 2 phase 220V other voltage is ok ,as your required |
| Power supply | Huayuan--63A,100A,160A,200A USA Hypertherm --65A,85A,105A,200A |
| Cutting system | Beijing Start cutting system |
| Transmission system | X,Y Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack |
| Support software | Nesting software--Australia fastcam software |
| Height control | arc voltage torch height controller |
| Guide way | round rail and Hinwin quare rails for choose |
| Table-board | Steel blade saw tooth mesa |
| Steel blade saw tooth mesa | Ray plug drives 860 |
No.4 After-sale service
a. 24 months guarantee of the whole machine
b. Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
c. Lifetime maintenance free of charge
d. We will provide the consumable parts at an agency price when you need replacement
e. Machine has been adjusted and tested before delivery
f. Our staff can be sent to your company to install or adjust if necessary
| Packaging | 1. Inner wrapping film to protect machine against rust during shipping on sea. |
| 2. Outer plywood case prevent collisions | |
| Shipping | Machine volume is very large, we usually transport machine by sea or by train to inland country, such as Russian. Support FOB, CIF, DDU. |
No.5 Related models CXP1015 CXP1212 CXP1325 CXP1530 CXP2030 CXP2040 CXP1540 CXP1550 CXP1560 etc
