gantry plasma cutting machine CXP3060
No.1 FeaturesThis model is gantry structure. Its cross beam have many specifications: 3m, 4m, 5m, 6m, etc. Both of them adopt dual drive and lineal guide. Torch quantity is optional according to users
Send inquiry
No.1 Features
This model is gantry structure. Its cross beam have many specifications: 3m, 4m, 5m, 6m, etc. Both of them adopt dual drive and lineal guide. Torch quantity is optional according to users' requirement, also can be configured as abnormity cutting and strip cutting. Control system adopts industrial computer, figure tracking function when cutting.
No.2 Application

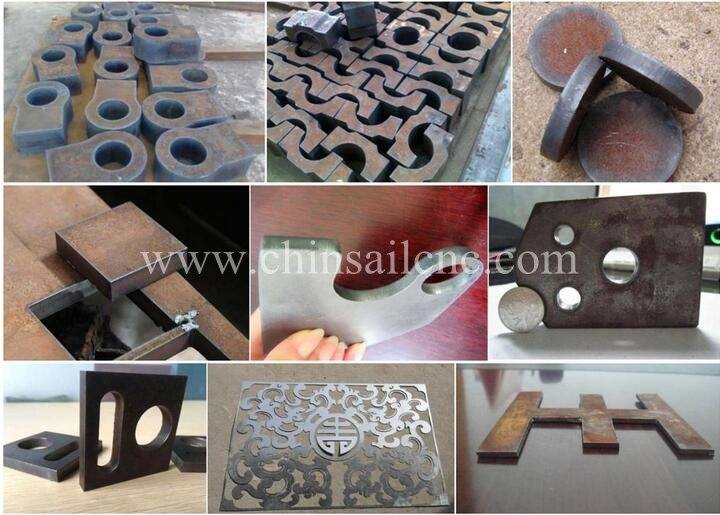

It is suitable for cutting kinds of metal materials like low carbon steel, alloy steel and non-ferrous metal and is widely applied in the manufacturing of boiler pressure container,chemical container, industrial power stationconstruction, metallurgy, aerospace industry,automobiles, building and so on.
No.3 Parameters
| Model | Gantry plasma cutting machine |
| Working size | 3000mm*6000mm |
| Repeat positioning accuracy | ±0.05mm |
| Traveling speed | 0-24000rpm/min |
| Cutting speed | 10-15m/min |
| Transmission model | Gear rack drive |
| Transmission system | X,Y Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack |
| Operating System | START/Starfire with USB Interface |
| Driver | Leadshine drives |
| Plasma power supply | Huayuan 200A |
| Cutting thickness | 0.1-30mm |
| Cutting type | Plasma/oxy-acetylene or propane |
| Input voltage | 3 phase,380v±10% |
| Mode of file transfer | USB Interface |
| Guide way | Taiwan HIWIN square rail |
| Straight line positioning precision | ±0.2mm/10m |
| Straight line repeat precision | ±0.3mm/10m |
| Environmental temperature | -5~45°C |
| Humidity | <90><!--90--> |
No.4 Service
A Guarantee
24 months for the whole machine.
Within 24 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
Out of 24 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support
1, Technical support by phone, email or Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
No.5 Related models CXP3060 CXP3080, CXP3010, CXP3012 etc.
