plasma cutting machine CXP2030
No.1 Main functiona. Don't need programming CAD drawing software automatic conversion, the U disk into the cutting machine for cutting processingb. Dual purpose(selective assembly) Can according
Send inquiry
No.1 Main function
a. Don't need programming CAD drawing software automatic conversion, the U disk into the cutting machine for cutting processing
b. Dual purpose(selective assembly) Can according to user needs to go as a way for both plasma and flame cutting
c. Operation maintenance With 7 inch VGA LCD, all adopt Chinese characters display (also can according to user requirements,equipped with a
ariety of languages such as English, Russian version).Display below a reminder of various operating methods, the operator simply training,can be the operations,use very convenient
d. With slotted automatic compensation function
e. The original trajectory can be rolled back processing operations
f. Can make power response to operation
g. Can assist set and automatic sorting, so as to realize continuous bulk cutting
h. The system has high reliability, fault self-diagnosis
i. Turning can be automatically slow down, to better improve the cutting quality

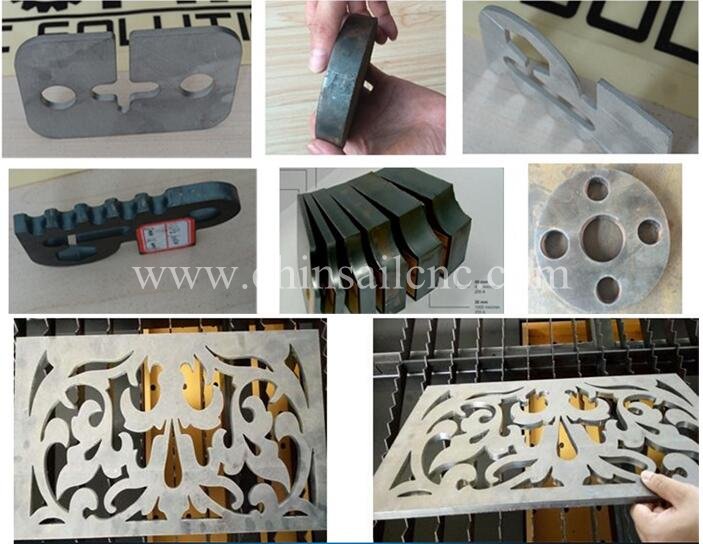

No.2 Application
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and
ther metal plate and tube.
No.3 Technical Parameters
| Model | CXP-2030 (Option other working area ) |
| Cutting accuracy | ±0.4mm |
| Reposition accuracy | ±0.2mm |
| Power | 8.5 kw |
| Working size | X=2000,Y=3000,Z=150mm |
| Working table size | 1500*3000mm |
| Feeding height | 150mm |
| Max running speed | 10m/min |
| X/Y axis transmission | X/Y Axis Gear and rack and Taiwan Hiwin Square rails |
| Plasma power | US 45A Optional : US 65A/ 85A/105A/125A/200A Chinese Huayuan plasma power supplier |
| Cutting thickness | 0.5-30mm (Carbon steel,stainless steel) |
| Torch Height Controller | with |
| Acr control system | with |
| Driver motor | Stepper motor / imported servo motor optional |
| Working voltage | AC380v/50Hz |
| Control system | Starfire |
| Remark: All machine models can be customized according to clients' special requirement. | |
No.4 FAQ
1 How to pay to you ?
T/T inadvance or by Alibaba trade assurance . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2 How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3 Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4 How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5 How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading .
No.5 Related models CXP1015 CXP1212 CXP1325 CXP1530 CXP2030 CXP2040 CXP1540 CXP1550 CXP1560 etc
