Shandong Chinsail Machinery Co., Ltd.

No.1 Features
a. Cutting Head
1、Including control box for adjusting height,photoelectric switch and limit switch.
2、Adjust the distance automatically as the different materials.
3、Can sensor automatically surface.

Special design for plasma head
1、If you need to cut less than 30mm,general plasma head is suitable.
2、If you need to cut 30mm to 200mm,a flame cutting head can help you.
3、If you need ,we can also add a drill head.

Drill head and cutting head can form an integrated mode,significant cost savings and improve efficiency.

b. US supplier
1、The Power is imported from America.It is famous all over the word.
2、The biggest difference,when cutting thick steel metal, perpendicularity of US Power is better.
3、The cutting stability is better.
4、The precision is higher,but not very evident.

c. Plasma Transmission:Taiwan Hiwin Square rail and Rack gear.
X,Y axis all use Taiwan Hiwin dual-straight square rail that make the machine driving smoothly with high-precision.
The machine is transmitted by rack,which ensure high travelling speed and cutting speed.

d. Beijing Starfire control system
Interface
Manual control,control machine work moving
Input drawing from U disk
English pattern
Fastcam type setting software can support ARTCAM,Auto-CAD etc. Design software.
The advantages(Than Starfire ontrollor):
1.The quality of Beijing Starfire control system is better,in the process of using it almost no problem.
2.In case of a power cut while it is cutting,it will cut from the same point when power is resumed.

e.  8NM Stepper motor
1、Won't lose step when it work,guarantee the positional accuracy of the motor.
2、Speed performance increased about 30%,improve the equipment sped heavily.
3、Motor heat fell down 30%,prolong the motor life-time.
4、Vibration phenomenon significanly reduced,motor run more smoothly.
Optional: Servo motor

No.2 Application
Filed
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.

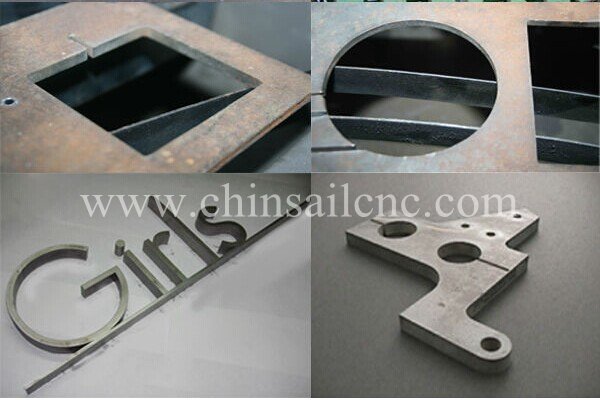

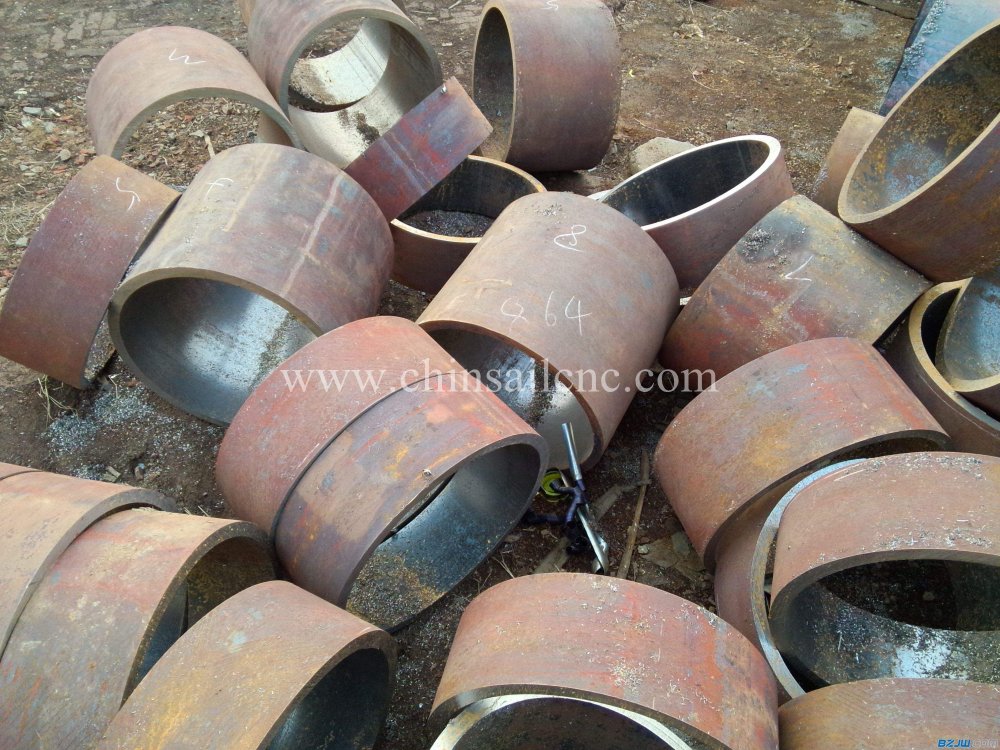

Materials
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

No.3 The Technical data of the cnc plasma cutting machine


No.4 Guarantee
a. 24 months guarantee of the whole machine
b. Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
c. Lifetime maintenance free of charge
d. We will provide the consumable parts at an agency price when you need replacement
e. Machine has been adjusted and tested before delivery

No.5 Related models CXP1015 CXP1212 CXP1325 CXP1530 CXP2030 CXP2040 CXP1540 CXP1550 CXP1560 etc
